BEY65-4
Official DistributorBy ABB
SKU
ABBBEY654
MPN
1SBN083413R2000
Weight
0.2 kg

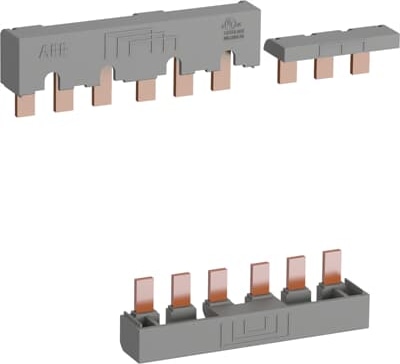

BEY65-4 is a connection set used to easily connect the main poles of the Line, Delta and Star contactors of a star-delta starter for AF40...AF65, AFC40...AFC65 or AFS40...AFS65 contactor ranges.
The BEY connection set is made up of:
• Line contactor / delta contactor: upstream phase-to-phase connection
• Delta contactor / star contactor: downstream connection in parallel
• Star contactor: star point upstream
• Insulated, solid copper bar.
Technical Specifications
Dimensions
| Product Net Width | 110 mm |
| Product Net Depth / Length | 20.2 mm |
| Product Net Height | 40 mm |
| Product Net Weight | 0.2 kg |
Technical
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable for | AF40 |
| Suitable for | AF52 |
| Suitable for | AF65 |
| Suitable for | AFC40 |
| Suitable for | AFC52 |
| Suitable for | AFC65 |
| Suitable for | AFS40 |
| Suitable for | AFS52 |
| Suitable for | AFS65 |
| Suitable for | AF40B |
| Suitable for | AF52B |
| Suitable for | AF65B |
| Product Name | Connection Set |
Why Proax for ABB BEY65-4?
Proax is an authorized distributor of ABB BEY65-4 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BEY654 |
| Pack Size | 1 |
