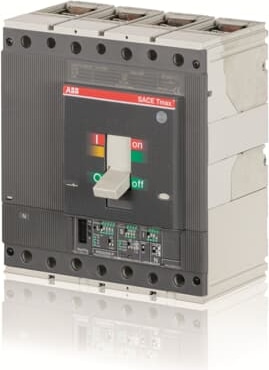

C.BREAKER TMAX T5N 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 400
Technical Specifications
Dimensions
Product Net Width | 186 mm |
Product Net Height | 205 mm |
Product Net Depth / Length | 103.5 mm |
Product Net Weight | 6.2 kg |
Additional Information
Electrical Durability | 7000 cycle |
Electrical Durability | 60 cycles per hour |
Mechanical Durability | 20000 cycle |
Mechanical Durability | 120 cycles per hour |
Number of Poles | 4 |
Power Loss | at Rated Operating Conditions per Pole 16.5 W |
Product Main Type | SACE Tmax T |
Product type | Automatic Circuit Breaker |
Rated Current (In) | 400 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 70 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (380 V AC) 36 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 36 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (415 V AC) 36 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (440 V AC) 30 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V AC) 25 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (690 V AC) 20 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 70 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (380 V AC) 36 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 36 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 36 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V AC) 30 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V AC) 25 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (690 V AC) 20 kA |
Rated Uninterrupted Current (Iu) | 400 A |
Release | PR222DS/P-LSIG |
Release Type | EL |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | T5 |
Suitable for | T5 |
Suitable for Product Class | Moulded Case Circuit Breakers |
Terminal Connection Type | Fixed Circuit-Breakers |
Terminal Connection Type | Front |
Test Voltage Max (Utest) | 3500 V |
Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
Version | F |
