Official DistributorBy ABB
SKU
MPN
1SDA054513R1
Weight
1 kg

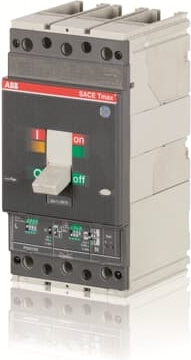

C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS POUR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 100
Technical Specifications
Dimensions
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.5 kg |
Additional Information
| Electrical Durability | 8000 cycle |
| Electrical Durability | 120 cycles per hour |
| Mechanical Durability | 20000 cycle |
| Mechanical Durability | 240 cycles per hour |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 1.7 W |
| Product Main Type | SACE Tmax T |
| Product type | Automatic Circuit Breaker |
| Rated Current (In) | 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1150 V |
| Rated Operational Voltage | 1150 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 12 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1150 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1150 V AC) 12 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T4 |
| Suitable for | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Terminal Connection Type | Front for Copper Cables |
| Test Voltage Max (Utest) | 3500 V |
| Version | F |
Why Proax for ABB T4V250 PR221DS-LS/I In100 3p FFC 1150VAC?
Proax is an authorized distributor of ABB T4V250 PR221DS-LS/I In100 3p FFC 1150VAC and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | T4V250PR221DSLSIIn1003pFFC1150VAC |
| Pack Size | 1 |
