Phoenix Contact 1698164
AllMeasurement & MonitoringCurrent and voltage measuringCurrent transducers, AC/DC

1698164

Official Distributor

By Phoenix Contact

SKU
PHX1698164
MPN
ECM-UC-10A-UI-REL
Weight
0.171 kg

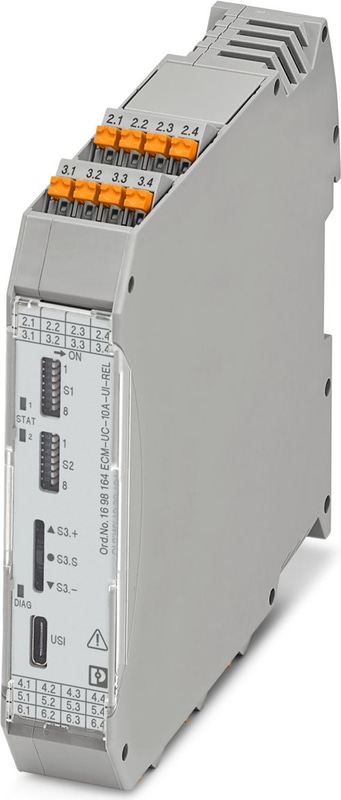

ECM-UC-10A-UI-REL - Current transducers

Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Four current measuring ranges: 0 A ... 0.1 A to 0 A ... 12.5 A. Relay output, Standard configuration, Push-in connection

Documents

Technical Specifications

Insulation characteristics

InsulationSafe isolation in accordance with IEC/EN 61010-1
Overvoltage categoryIII (300 V)
Pollution degree2

Electrical properties

Step response (10-90%)200 ms (AC/DC)
Step response (10-90%)20 ms (DC)
Maximum temperature coefficient< 0.02 %/K
Maximum transmission error0.5 % (of nominal range value under nominal conditions)
Rated Insulation Voltage300 V AC (to earth)

Electrical isolation IEC 61010-2-030

Standards/regulationsIEC 61010-2-030
Measuring categoryIII (300 V)

Electrical isolation Input/output

Test voltage4 kV AC (50 Hz, 60 s)

Electrical isolation Input/power supply

Test voltage4 kV AC (50 Hz, 60 s)

Electrical isolation Output/supply

Test voltage2 kV AC (50 Hz, 60 s)

Supply

Nominal Supply Voltage24 V DC
Nominal supply voltage range12 V DC ... 24 V DC -20 % ... +25 %
Supply Voltage Range9.6 V DC ... 30 V DC
Power consumption≤ 2.3 W (30 V DC)

Signal: digital

Voltage input signal0 V DC ... 30 V DC
Current Input Signal2 mA ... 15 mA

Measurement

Input current range0 A AC ... 10 A AC
Input current range-10 A DC ... 10 A DC
Measuring Range0 A AC/DC ... 0.1 A AC/DC
Measuring Range0 A AC/DC ... 1 A AC/DC
Measuring Range0 A AC/DC ... 5 A AC/DC
Setting range for min. input current0 A AC/DC ... 100 mA AC/DC
Setting range for max. input current0 A AC/DC ... 12.5 A AC/DC (DIN/EN 61010-1)
Setting range for max. input current0 A AC/DC ... 10 A AC/DC (UL 61010-1)
Setting range for max. input current-12.5 A DC ... 12.5 A DC (DIN/EN 61010-1)
Setting range for max. input current-10 A DC ... 10 A DC (UL 61010-1)
Overload capacity2 x IN
Surge strength10 x IN
Frequency measuring range0 Hz
Frequency measuring range10 Hz ... 100 Hz
Frequency measuring range10 Hz ... 200 Hz
Frequency measuring range10 Hz ... 500 Hz
Frequency measuring range10 Hz ... 1000 Hz
Curve typeAC, DC or distorted currents

Switching: Relay

Contact switching type1 changeover contact
Contact MaterialAgNi
Minimum Switching Voltage12 V (10 mA)
Maximum Switching Voltage250 V AC
Maximum Switching Voltage48 V DC
Limiting Continuous Current6 A AC (250 V AC, 50/60 Hz)
Limiting Continuous Current1 A DC (48 V DC)

Signal: Voltage/current

Voltage output signal0 V ... 10 V
Voltage output signal0 V ... 5 V
Voltage output signal1 V ... 5 V
Voltage output signal2 V ... 10 V
Voltage output signal-10 V ... 10 V
Voltage output signal-5 V ... 5 V
Voltage output signal10 V ... -10 V
Voltage output signal5 V ... -5 V
Voltage output signal10 V ... 0 V
Voltage output signal5 V ... 0 V
Current Output Signal0 mA ... 20 mA
Current Output Signal4 mA ... 20 mA
Current Output Signal20 mA ... 0 mA
Current Output Signal20 mA ... 4 mA
Load/output load voltage output> 10 kΩ
Load/Output Load Current Output< 500 Ω

Signal: digital

Max. voltage output signal24 V DC
Max. current output signal≤ 100 mA

Connection data

Connection MethodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 13

WBM

DesignationWBM: Default address, USB-C interface
IP address192.168.128.1

Item dimensions

Width22.6 mm
Height106.7 mm
Depth113.8 mm
Depth114.5 mm (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715)

Material specifications

Colorgray (RAL 7042)
Flammability rating according to UL 94V0 (Housing)
Housing MaterialPA 6.6-FR

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-40 °C ... 60 °C
Ambient Temperature (Operation)-40 °F ... 140 °F
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 4000 m
Permissible humidity (operation)≤ 95 % (non-condensing)

CE

CertificateCE-compliant

UKCA

CertificateUKCA-compliant

UL, USA/Canada

IdentificationInd. Cont. Eq. E238705-E196811

EMC data

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Low Voltage DirectiveConformance with Low Voltage Directive
Noise immunityEN 61000-6-2
Noise emissionEN 61000-6-4

Standards and Regulations

Standards/regulationsIEC 61010-1
Standards/regulationsIEC/EN 61131-2 (type 3)
Standards/regulationsIEC/EN 61131-2 (type 3)

Mounting

Mounting Positionvertical or horizontal
