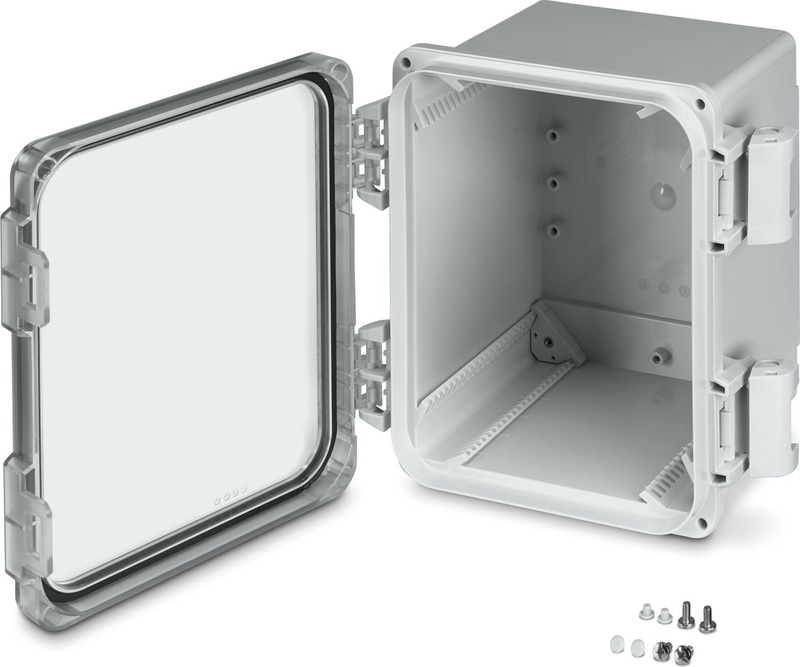

The product photo shows an open outdoor housing
SKU
MPN
OCS HP 100806 TRANS
Series OCS-HP
OCS HP 100806 TRANS - Electronics housing
Outdoor housing, color: light gray, dimensions: 10" x 8" x 6", incl. corner inlays, cover plugs, screws, cover: transparent, plastic latch, material: PC UV-stabilized
- Internationally certified housing system
- Special plastic ensures safe continuous operation
- Provides protection against the ingress of jet water
- Withstands even heavy mechanical strain
Technical Specifications
Notes
Assembly instruction: | Only use the screws provided to screw the components onto the corner inlays, the mounting pillars, and the housing. |
Recommendation | To maintain the degree of protection, you must install suitable components with at least the same IP degree of protection in all openings. |
Recommendation | Further information and detailed dimensions are available in the download area. |
Order information: | Mounting feet, mounting plates, mounting panels, and the mount for mast mounting are available as accessories, but are not supplied as standard. |
Product properties
Housing type | Outdoor housing |
Housing series | OCS |
Product family | OCS..1008.. |
Type | Complete housing with transparent cover incl. mounting material |
Ventilation openings present | no |
Battery compartment | no |
Dimensions
Width | 257 mm |
Height | 276 mm |
Depth | 185 mm |
Hole diameter | 10 mm (Can be secured mechanically with the latch) |
Material specifications
Color (Housing) | light grey (RAL 7035) |
Color (Housing cover) | transparent |
Material (Housing) | PC UV stabilized |
Material (Seal) | PUR |
Flammability rating according to UL 94 | V2 |
Insulating material | PC |
Surface characteristics | untreated |
Impact strength | IK10 (at -35°C ... +40°C) |
Glow-wire test
Specification | IEC 60695-2-11:2014-02 |
Temperature | 850 °C |
Time of exposure | 30 s |
Degree of protection (IP code)
Specification | IEC 60529:2001-02 |
Ambient conditions
Max. IP code to attain | IP69 |
Max. NEMA code to attain | 6P |
Impact strength | IK10 (at -35°C ... +40°C) |
Ambient Temperature (Operation) | -40 °C ... 80 °C |
Mounting
Mounting Type | Mast mounting or wall mounting |
Mounting Position | any |
Packaging specifications
Type of packaging | Box packaging |
