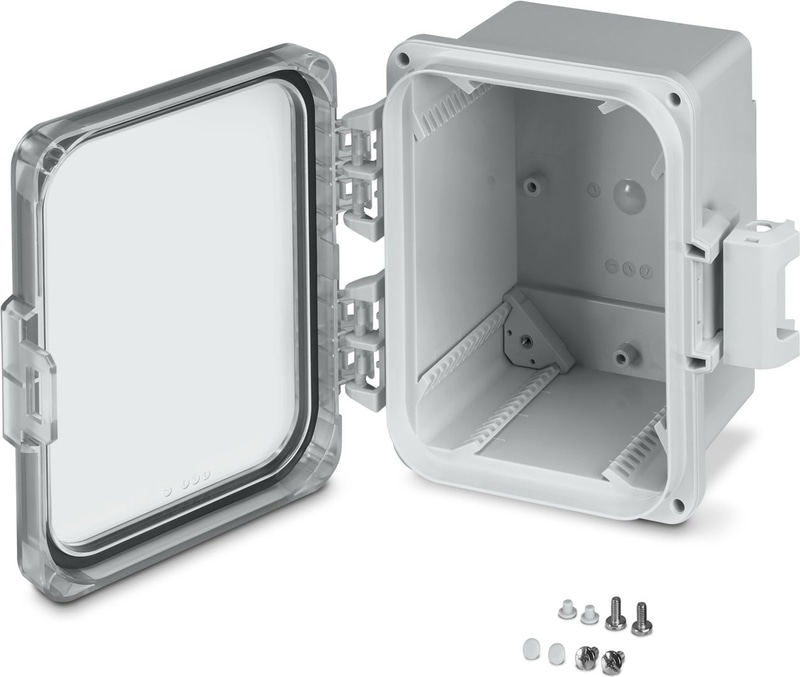

The product photo shows an open outdoor housing
Official DistributorSKU
MPN
OCS HP 080604 TRANS
Series OCS-HP
OCS HP 080604 TRANS - Electronics housing
Outdoor housing, color: light gray, dimensions: 8" x 6" x 4", incl. corner inlays, cover plugs, screws, cover: transparent, plastic latch, material: PC UV-stabilized
- Internationally certified housing system
- Special plastic ensures safe continuous operation
- Provides protection against the ingress of jet water
- Withstands even heavy mechanical strain
Technical Specifications
Notes
| Assembly instruction: | Only use the screws provided to screw the components onto the corner inlays, the mounting pillars, and the housing. |
| Recommendation | To maintain the degree of protection, you must install suitable components with at least the same IP degree of protection in all openings. |
| Recommendation | Further information and detailed dimensions are available in the download area. |
| Order information: | Mounting feet, mounting plates, mounting panels, and the mount for mast mounting are available as accessories, but are not supplied as standard. |
Product properties
| Housing type | Outdoor housing |
| Housing series | OCS |
| Product family | OCS..0806.. |
| Type | Complete housing with transparent cover incl. mounting material |
| Ventilation openings present | no |
| Battery compartment | no |
Dimensions
| Width | 204 mm |
| Height | 223 mm |
| Depth | 134 mm |
| Hole diameter | 10 mm (Can be secured mechanically with the latch) |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Color (Housing cover) | transparent |
| Material (Housing) | PC UV stabilized |
| Material (Seal) | PUR |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PC |
| Surface characteristics | untreated |
| Impact strength | IK10 (at -35°C ... +40°C) |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Degree of protection (IP code)
| Specification | IEC 60529:2001-02 |
Ambient conditions
| Max. IP code to attain | IP69 |
| Max. NEMA code to attain | 6P |
| Impact strength | IK10 (at -35°C ... +40°C) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
Mounting
| Mounting Type | Mast mounting or wall mounting |
| Mounting Position | any |
Packaging specifications
| Type of packaging | Box packaging |
Why Proax for Phoenix Contact 1471772?
Proax is an authorized distributor of Phoenix Contact 1471772 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
