1378553
Official DistributorSKU
PHX1378553
MPN
FR 1,27/ 68-FWL
Weight
0.002 kg
Series FR

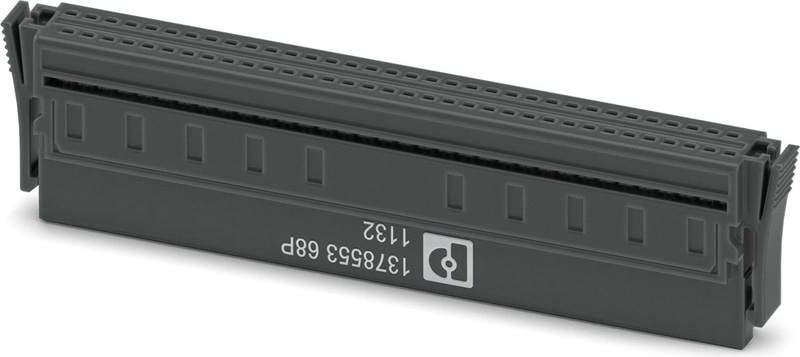

FR 1,27/ 68-FWL - IDC female connectors
IDC female connector, nominal current: 1.4 A, Test voltage: 500 V AC, number of positions: 68, pitch: 1.27 mm, color: black, contact surface: Gold, contact connection type: Socket
- Time savings during the development process with customer-specific simulations for data integrity
- Design-in support during device development using MCAD/ECAD data and a free sample service
- Can be ordered pre-assembled: IDC female connectors with flat-ribbon cable enable immediate use in the device
- Gold-plated contacts ensure transfer quality remains stable over the long term
Technical Specifications
Notes
| Note regarding documentation | Current documents such as 3D models, products family drawings, data sheets or packaging drawings are available in the Download Center. |
Product properties
| Product family | FR 1,27/...-FWL |
| Number of Positions | 68 |
| Pitch | 1.27 mm |
| Number of rows | 2 |
Electrical properties
| Nominal current IN | 1.4 A IEC 60512-5-2:2002-02 (at 20°C 50-pos.) |
| Degree of pollution | 3 |
| Contact resistance | 10 mΩ |
| Test voltage | 500 V AC IEC 60512-4-1:2003 |
Conductor connection
| Connection Method | Displacement connection |
| Conductor cross section AWG | 30 |
Interlock
| Locking Type | Snap-in locking |
| Mounting flange | Self-locking flange |
Dimensions
| Pitch | 1.27 mm |
| Width [w] | 49.53 mm |
| Height [h] | 14.55 mm |
| Length [l] | 5 mm |
Application
| Contact cover | 0.9 mm |
| Center offset | ± 0.7 mm in longitudinal and transverse direction |
| Angular tolerance | ± 5 ° in longitudinal and transverse direction |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Selective coating |
| Metal surface contact area (top layer) | Gold (Au) |
| Metal surface contact area (middle layer) | Nickel (Ni) |
| Metal surface soldering area (top layer) | Tin (Sn) |
| Metal surface soldering area (middle layer) | Nickel (Ni) |
Material data - housing
| Color (Housing) | black (9005) |
| Insulating material | LCP |
| Insulating material group | IIIb |
| CTI according to IEC 60112 | 150 |
| Flammability rating according to UL 94 | V0 |
Connection 1
| Insulating material | LCP |
| CTI according to IEC 60112 | 150 |
Thermal test | Test group C
| Specification | IEC 60512-5-2:2002-02 |
Insulation resistance
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | ≥ 5 GΩ |
Air clearances and creepage distances |
| Insulating material group | IIIb |
| Minimum value for clearance and creepage distance | 0.32 mm |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 2000 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 1.5 mm (10 Hz ... 58 Hz) |
| Acceleration | 200 m/s² (58 Hz ... 2000 Hz) |
| Test duration per axis | 1 h |
Durability test
| Specification | IEC 60512-9-1:2010-03 (following) |
| Contact resistance R1 | 10 mΩ |
| Contact resistance R2 | 12 mΩ |
| Insertion/withdrawal cycles | 500 |
| Insulation resistance, neighboring positions | ≥ 5 GΩ |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 490 m/s² |
| Shock duration | 11 ms |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | Tray |
| Outer packaging type | Carton |
