1399647
Official DistributorSKU
PHX1399647
MPN
FR 1,27/ 50-SR
Series FR

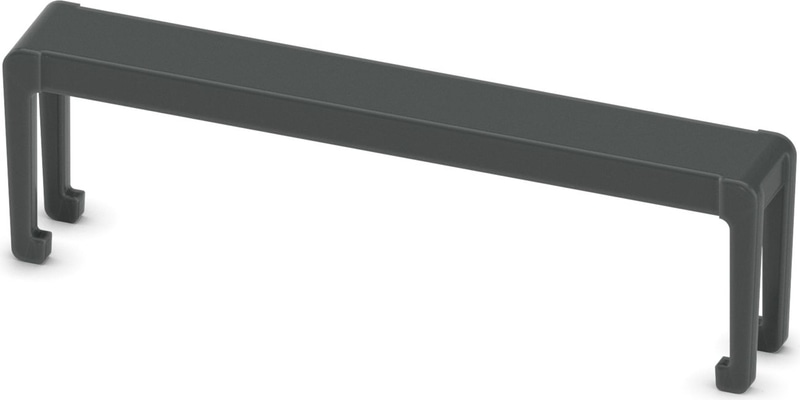

FR 1,27/ 50-SR - Strain relief
Strain relief, number of positions: 50, pitch: 1.27 mm, color: black
- Design-in support during device development using MCAD/ECAD data and a free sample service
- Can be ordered pre-assembled: IDC female connectors with flat-ribbon cable enable immediate use in the device
Technical Specifications
Notes
| Note regarding documentation | Current documents such as 3D models, products family drawings, data sheets or packaging drawings are available in the Download Center. |
Product properties
| Product family | FR 1,27/...-SR |
| Number of Positions | 50 |
| Pitch | 1.27 mm |
Electrical properties
| Degree of pollution | 3 |
Dimensions
| Pitch | 1.27 mm |
| Width [w] | 35.98 mm |
| Height [h] | 10.75 mm |
| Length [l] | 4.95 mm |
Material data - housing
| Color (Housing) | black (9005) |
| Insulating material | LCP |
| Insulating material group | IIIb |
| CTI according to IEC 60112 | 150 |
| Flammability rating according to UL 94 | V0 |
Connection 1
| Insulating material | LCP |
| CTI according to IEC 60112 | 150 |
Packaging specifications
| Type of packaging | packed in cardboard |
Why Proax for Phoenix Contact 1399647?
Proax is an authorized distributor of Phoenix Contact 1399647 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 200 |
