Official DistributorSKU
MPN
NBC-HDMI-HAM/7,5-PVC/HAM
Weight
0.631 kg
Series NBC-HDMI-HAM

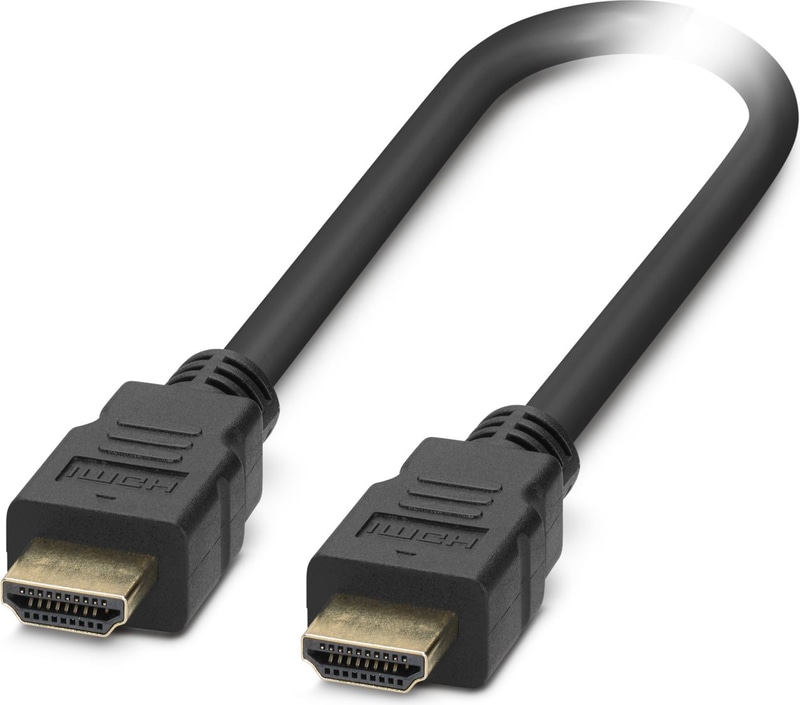

NBC-HDMI-HAM/7,5-PVC/HAM - HDMI cable
HDMI cable, degree of protection: IP20, cable length: 7.5 m, number of positions: 19, material: LCP, HDMI High Speed
- HDMI high-speed patch cables
- Integrated network transmission thanks to HDMI Ethernet channel
- Reliable transmission of 4K videos
Technical Specifications
Product properties
| Sensor Type | HDMI High Speed |
| Number of Positions | 19 |
| Shielded | yes |
Electrical properties
| Insulation resistance | 100 MΩ |
| Test voltage | 500 V AC |
| Test voltage Core/Core | 500 V AC |
| Test voltage Core/Shield | 500.00 V AC |
| Wave impedance | 100 Ω |
Mechanical data
| Insertion/withdrawal cycles | > 10000 |
Material specifications
| Color of the housing part | black |
| Flammability rating according to UL 94 | UL94 V0 |
| Housing Material | LCP |
Dimensions
| Width | 20.5 mm |
| Height | 16 mm |
| Length | 20.5 mm |
Connection 1
| Type | Plug straight HDMI type A |
| Shielded | yes |
| Insertion/withdrawal cycles | > 10000 |
| Insulation resistance | 100 MΩ |
| Degree of Protection | IP20 |
Connection 2
| Type | Plug straight HDMI type A |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 7.50 m |
PVC HDMI high speed black [HDMI]
| Shielded | yes |
| UL AWM style | 20276 |
| Cable Type | PVC HDMI high speed black |
| Cable type (abbreviation) | HDMI |
| External Cable Diameter | 6.00 mm |
| Outer sheath, material | PVC |
| External sheath, color | black |
| Shielding | Aluminum-lined foil |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
