ECOR-1-BSC2/FO/2X21
Weight
0.031 kg
Series ECOR

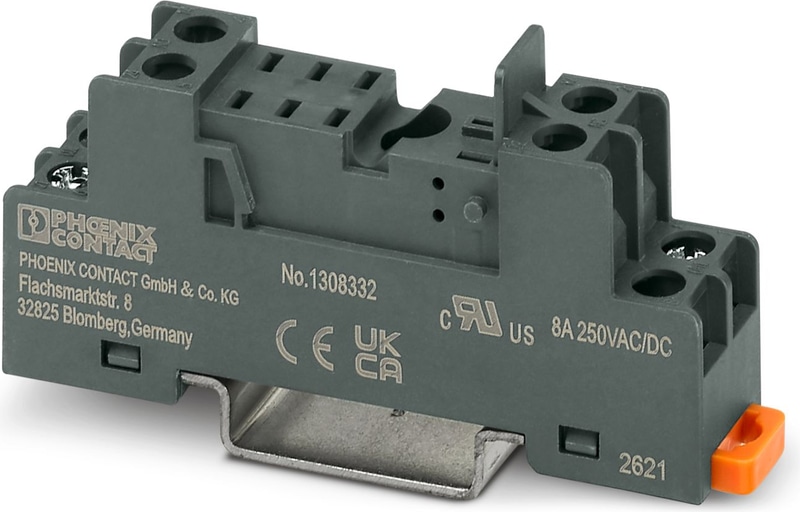

ECOR-1-BSC2/FO/2X21 - Relay base
ECOR-1 relay base, for FASTON relay, Fork-type cable lug, 2 changeover contacts, Input voltage 230 V AC
Technical Specifications
Notes
| Notes on operation | Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
| Notes on operation | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
| Notes on operation | Basic insulation is maintained against adjacent modules in the DIN rail direction. If the application has higher requirements for the insulation (reinforced insulation), then these must be realized by means of suitable measures (e.g., partition plates). |
| Notes on operation | Any unused screw connections have to be tightened with torque. |
Product properties
| Product family | ESSENTIAL edition |
Insulation characteristics: Air clearances and creepage distances between the power circuits
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage () | 1 kVrms (50 Hz, 1 min., open contact) |
Air clearances and creepage distances between the power circuits
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 2.5 kV |
Input data
| Nominal input voltage UN | ≤ 230 V AC |
Connection data
| Connection Method | Fork-type cable lug |
| Conductor cross section rigid | 0.4 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.4 mm² ... 1.5 mm² |
| Conductor cross section AWG | 21 ... 16 |
| Tightening torque | 1 Nm |
Dimensions
| Width | 15.7 mm |
| Height | 71 mm |
| Depth | 35.6 mm |
Material specifications
| Color | traffic grey B (RAL 7043) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
CE
| Certificate | CE-compliant |
UKCA
| Certificate | UKCA-compliant |
Standards and Regulations
| Standards/regulations | IEC 60664-1 |
Air clearances and creepage distances between the power circuits
| Standards/regulations | IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
