Official DistributorSKU
MPN
ECOR-1-BSC2-RT/2X21
Weight
0.035 kg
This product is Not Cancellable/Not Returnable
Series ECOR

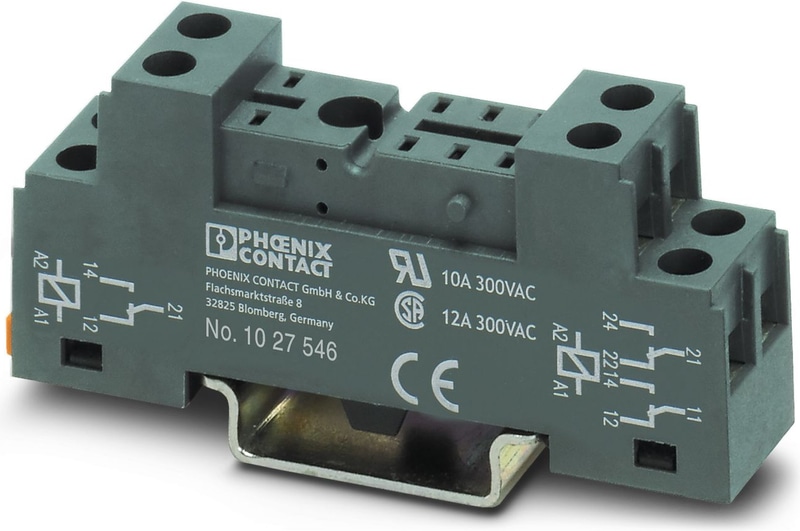

ECOR-1-BSC2-RT/2X21 - Relay base
ECOR-1... relay base, for miniature power relays or miniature switching relays with 1 or 2 changeover contacts, bolt connection, for mounting on NS 35/7,5.
Technical Specifications
Notes
| Notes on operation | Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
| Notes on operation | The outputs are not suitable for switching different outer conductors. |
| Notes on operation | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
| Notes on operation | At least a basic level of insulation is maintained against adjacent modules in the DIN rail direction. If the application has higher requirements on the insulation (reinforced insulation), then these must be realized through suitable measures (e.g. partition plates). |
Product properties
| Product family | ESSENTIAL edition |
| Operating mode | 100% operating factor |
Insulation characteristics: Air clearances and creepage distances between the power circuits
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | ≤ 230 V AC/DC |
| Nominal current IN | 10 A |
| Test voltage relay winding/relay contact | 2 kVrms (50 Hz, 1 min.) |
Air clearances and creepage distances between the power circuits
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 4 kV |
Input side
| Connection Method | Bolt connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Conductor cross section AWG | 14 |
| Tightening torque | 0.5 Nm ... 0.7 Nm |
Output side
| Connection Method | Bolt connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Conductor cross section AWG | 14 |
| Tightening torque | 0.5 Nm ... 0.7 Nm |
Dimensions
| Width | 15.8 mm |
| Height | 71.5 mm |
| Depth Retaining bracket | 58.1 mm (with retaining bracket) |
Material specifications
| Color | traffic grey B (RAL 7043) |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances between the power circuits
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
