Official DistributorSKU
MPN
ECOR-2-BSC3/4X21
Weight
0.078 kg
Series ECOR

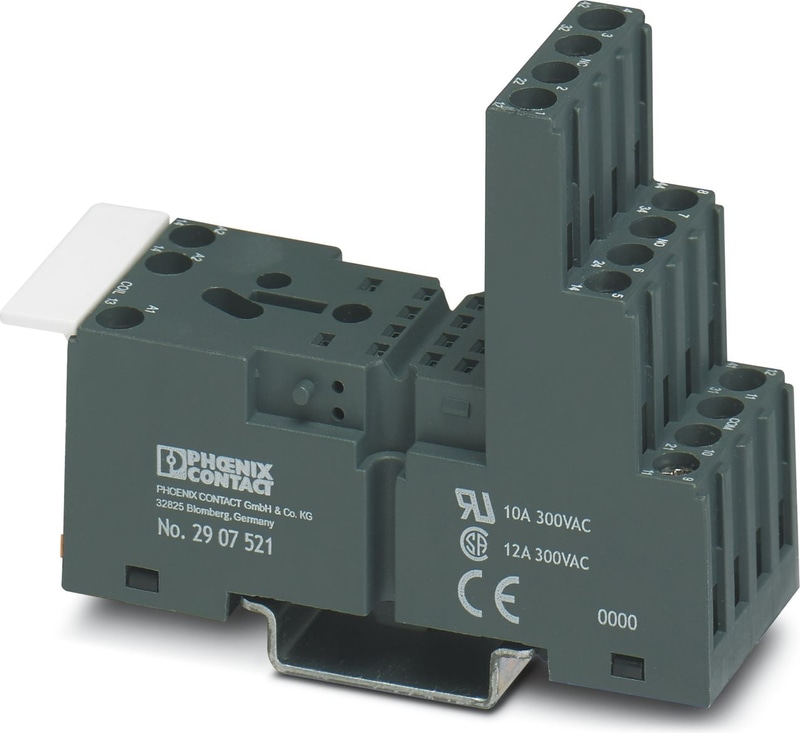

ECOR-2-BSC3/4X21 - Relay base
ECOR-2 relay base, for industrial relay with 2 or 4 changeover contacts, screw connection, plug-in option for input/interference suppression modules, for mounting on NS 35/7,5
Technical Specifications
Product properties
| Product family | ESSENTIAL edition |
Electrical properties
| Nominal voltage UN | 300 V AC/DC |
| Nominal current IN | 12 A |
Input side
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 2x 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section rigid | 2x 0.2 mm² ... 1.5 mm² (with ferrule) |
| Conductor cross section flexible | 2x 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 2x 0.2 mm² ... 1.5 mm² (with ferrule) |
Output side
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 2x 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section rigid | 2x 0.2 mm² ... 1.5 mm² (with ferrule) |
| Conductor cross section flexible | 2x 0.2 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 2x 0.2 mm² ... 1.5 mm² (with ferrule) |
Dimensions
| Width | 27 mm |
| Height | 78.5 mm |
| Depth Retaining bracket | 86 mm (ECOR-RH-2) |
Material specifications
| Color | traffic grey B (RAL 7043) |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Accessories
LDP- 12- 24DC - Plug-in module, with freewheeling diode and yellow LED, polarity: A1+, A2-, input voltage: 12 ... 24 V DC ±20 %- LV-120-230AC/110DC - Plug-in module, with varistor and yellow LED, input voltage: 120 ... 230 V AC / 110 V DC ±20 %
Why Proax for Phoenix Contact 2907521?
Proax is an authorized distributor of Phoenix Contact 2907521 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
