Series ACS880 Single Drives

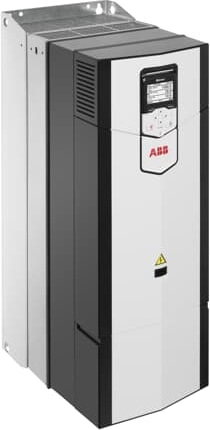

The ACS880-31 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-31 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction.
Documents
Technical Specifications
Dimensions
| Product Net Weight | 103 kg, 227.1 lb |
| Product Net Depth / Length | 430 mm, 16.929 in |
| Product Net Height | 965 mm |
| Product Net Width | 300 mm, 11.811 in |
| Package Level 1 Depth / Length | 1158 mm, 45.591 in |
| Package Level 1 Height | 654 mm, 25.748 in |
| Package Level 1 Width | 502.0 mm, 19.764 in |
| Package Level 1 Units | 1 carton |
Technical
| Number of phases | 3 |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Altitude | 4000 m |
| Operating Humidity (RHamb) | 5 to 95 |
| POWER factor | 1.0 |
| Sound dB (A) | 68 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47 ... 63 Hz |
| Frame Size | R8 |
| Input Voltage (Uin) | 380 ... 500 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 6, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Heavy-Duty Use (IHD) | 77 A |
| Output Current, Light-Overload Use (ILD) | 91 A |
| Output Current, Normal Use (In) | 101 A |
| Output Power, Heavy-Duty Use (PHD) | 45.0 kW |
| Output Power, Light-Overload Use (PLD) | 55.0 kW |
| Output Power, Normal Use (Pn) | 55.0 kW |
| Apparent Power Output | 87 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | - W |
| Temperature Rating | Maximum +55 °C, Minimum -15 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). |
Additional Information
| Product Main Type | ACS880-31 |
Environmental
| SCIP | 15292056-d176-4797-82ee-344739f8f7bc Finland (FI) |
