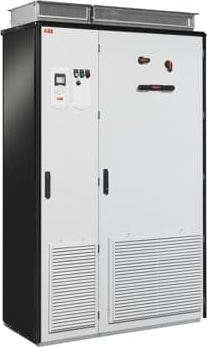

ACS880-37-0174A-7
Official DistributorBy ABB
SKU
ABBACS880370174A7
MPN
3AXD50000146147
Weight
749.801 kg
This item is ineligible for free shipping due to its size/weight.
Series ACS880 Single Drives
Harmonic distortions can disturb or even damage sensitive equipment connected in the same environment. Harmonics also cause additional losses in the network.
The ACS880-37 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements of harmonic guidance/standards such as IEEE 519, IEC61000-3-2, IEC61000-3-12, EC61000-3-4 and G5/4. Compared to a conventional drive, the harmonic content is reduced by up to 97%. The total harmonic current distortion is typically <3% in a nominal situation and an undistorted network.
The drive offers the possibility for network power factor correction to compensate for the low power factors of equipment connected to the same network. Lower harmonics and full motor voltage at all times mean reduced system losses and better overall system efficiency.
The ACS880-37 comes with wide variety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB’s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices. The robust design and enclosures up to IP54 make the ACS880-37 suitable for even very harsh environments.
Documents
ACS880 Single Drives
ABB ACS880 Single Drives: Compact Industrial Motor Control
The ABB ACS880 single drives deliver robust motor control in a compact, all-in-one package designed for demanding industrial applications. These wall-mounted and cabinet-built drives combine proven reliability with advanced technology to meet diverse automation needs.
Key Specifications:
- Power range: 0.55 kW to 6000 kW (0.75-8050 HP)
- Voltage compatibility: 230V to 690V
- Enclosure ratings: Up to IP55/UL Type 12
- Operating temperature: Up to 55°C ambient
- Harmonic content: Less than 3% with ultra-low harmonic drives
- Maintenance interval: Up to 9 years
Advanced Features:
- Enhanced Direct Torque Control (DTC) for precise motor control
- Compatible with all common motor types
- Comprehensive fieldbus and industrial Ethernet support
- Speed, position, and torque control capabilities
- Flexible hardware and software customization options
Industrial Benefits:
- Compact design for easy installation in various environments
- Robust construction for harsh industrial conditions
- Extended maintenance intervals reduce downtime
- Seamless integration with existing automation systems
- Ready-made solutions with customization possibilities
Technical Specifications
Supplier Information - CNIAB001
| Country or Territory of Origin | Finland |
| Lead Time | 4 week |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | CNIAB001EXPU |
Dimensions
| Product Net Weight | 1653 lb |
| Product Net Depth / Length | 27.480 in |
| Product Net Height | 84.449 in |
| Product Net Width | 48.425 in |
| Package Level 1 Depth / Length | 43.307 in |
| Package Level 1 Height | 93.425 in |
| Package Level 1 Width | 56.850 in |
Technical
| Number of phases | 3-phase |
| Degree of Protection | IP22 |
| Enclosure Type NEMA | Type1 |
| Altitude | 1000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| POWER factor | 1 |
| Sound dB (A) | 77 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 2pcs, 3V, 220mAh, 6g |
| Frequency (f) | 48 ... 63 Hz |
| Frame Size | R11 |
| Input Voltage (Uin) | 525 ... 690 V |
| Communication Protocol | TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | PROFINET 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 1 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 1 |
| Includes | Control unit |
| Includes | PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 7 / 5 |
| Output Current, Normal Use (In) | 174 A |
| Output Current, Light-Overload Use (ILD) | 165 A |
| Output Current, Heavy-Duty Use (IHD) | 142 A |
| Output Power, Normal Use (Pn) | 160 kW |
| Output Power, Light-Overload Use (PLD) | 160 kW |
| Output Power, Heavy-Duty Use (PHD) | 132 kW |
| Apparent Power Output | 208 kV·A |
| Temperature Rating | Maximum 40 °C |
| Temperature Rating | Minimum 0 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). |
Technical UL
| Output Current, Heavy-Duty Use (UL) | 144 A |
| Output Current, Light-Overload Use (UL) | 168 A |
| Output Current, Normal Use (UL) | - A |
| Output Power, Heavy-Duty Use (UL) | 150 Hp |
| Output Power, Light-Overload Use (UL) | 175 Hp |
| Output Power, Normal Use (UL) | - Hp |
