Official DistributorBy ABB
SKU
MPN
3AXD50000115327
Weight
365 kg
Series ACS880 Single Drives
The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.

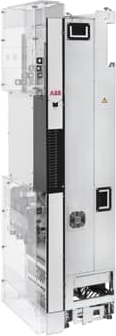

The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Documents
Technical Specifications
Dimensions
| Product Net Weight | 365 kg |
| Product Net Depth / Length | 512 mm |
| Product Net Depth / Length | 20.157 in |
| Product Net Height | 1741 mm |
| Product Net Height | 68.543 in |
| Product Net Width | 713 mm |
| Product Net Width | 28.071 in |
| Package Level 1 Depth / Length | 1077.0 mm |
| Package Level 1 Depth / Length | 42.402 in |
| Package Level 1 Height | 2050.0 mm |
| Package Level 1 Height | 80.709 in |
| Package Level 1 Width | 650.0 mm |
| Package Level 1 Width | 25.591 in |
| Package Level 1 Units | 1 carton |
Technical
| Number of phases | 3 |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 4000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| POWER factor | 1.0 |
| Sound dB (A) | 75 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R11 |
| Input Voltage (Uin) | 525 ... 690 V |
| Mounting Type | Module for cabinet building |
| Communication Protocol | CAN |
| Communication Protocol | DeviceNet |
| Communication Protocol | EtherNet/IP |
| Communication Protocol | MODBUS |
| Communication Protocol | Other Bus Systems |
| Communication Protocol | PROFIsafe |
| Communication Protocol | PROFIBUS |
| Communication Protocol | PROFINET IO |
| Communication Protocol | TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0 |
| Number of Hardware Interfaces | Other 6 |
| Number of Hardware Interfaces | Parallel 0 |
| Number of Hardware Interfaces | PROFINET 0 |
| Number of Hardware Interfaces | RS-232 0 |
| Number of Hardware Interfaces | RS-422 0 |
| Number of Hardware Interfaces | RS-485 1 |
| Number of Hardware Interfaces | Serial TTY 0 |
| Number of Hardware Interfaces | USB 1 |
| Includes | Control unit |
| Includes | PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Heavy-Duty Use (IHD) | 119 A |
| Output Current, Light-Overload Use (ILD) | 135 A |
| Output Current, Normal Use (In) | 142 A |
| Output Power, Heavy-Duty Use (PHD) | 110 kW |
| Output Power, Light-Overload Use (PLD) | 132 kW |
| Output Power, Normal Use (Pn) | 132 kW |
| Apparent Power Output | 170 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 214 W |
| Temperature Rating | Maximum +55 °C |
| Temperature Rating | Minimum -15 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). |
Technical UL
| Output Current, Heavy-Duty Use (UL) | 125 A |
| Output Current, Light-Overload Use (UL) | 144 A |
| Output Power, Heavy-Duty Use (UL) | 125 Hp |
| Output Power, Light-Overload Use (UL) | 150 Hp |
Why Proax for ABB ACS880-34-142A-7?
Proax is an authorized distributor of ABB ACS880-34-142A-7 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ACS88034142A7 |
| Pack Size | 1 |
