Official DistributorBy Omron
SKU

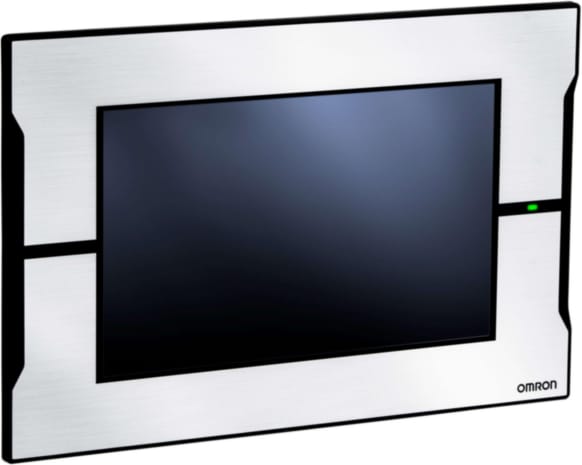

Touch screen HMI Panel PC with NS Runtime, Windows 10 IOT 2021, Intel Atom E3950 CPU, 9 inch, 1 x RS-232C, 2 x Ethernet (10/100/1000 Base-T), 2 x USB 2.0 Ports, 1 x USB 3.0 Port, 128 GB CFAST, 24 VDC, silver case
Documents
NYE Series Industrial Panel PC
Fundamental IPC Performance in a Reliable Design
Omron NYE Series Industrial PCs are designed with the Sysmac principles of creating the highest degree of machine performance while empowering users through data. Visualizing data is the key to leveraging operation technology data to implement OEE improvements to achieve next-level process efficiency.
The NYE Series Industrial Panel PC sets the standard for the IPC terminal through a powerful CPU, breadth of connectivity and industry-proven housings all as standard.
Overview
Robust design, custom configurability, and reliable performance are needed in any demanding application. The NYE IPC is the foundation for simplified machine control. Visualization technology which fulfills UL61010-2-201/CSA C22.2 NO.61010-2-201:14, EMC Directive (2004/108/EC) EN 61131-2:2007, and IP65 oil-proof, UL Type 4X( on front panel) while also bringing dependable 7th generation CPU performance to any application.
Key Features
- Widescreen in all models (7, 9, 12, and 15 inches)
- More than 16 million color display for all models
- 1280 x 800 high-resolution display for the 12- and 15-inch models
- Intel Atom Quadcore E3940
- 512GB Cfast 3DTLC
Technical Specifications
| Interaction | Touch screen |
| Display | Color graphics |
| HMI Type | Dedicated Standard HMI |
| Display size and type | 9 inch TFT Color LCD |
| Resolution | 800 x 480 |
| Memory Size | 900 MB |
| USB host | 2 built in |
| USB slave | 1 built in |
| Ethernet Port | 2 built in |
| Hazardous Location | Class 1 Division 2 |
| Enclosure Type | Type 1,4X indoor use only |
| International Standards | UL, CSA, CE |
| Maritime Standards | ABS,NK,LR,DNV,RINA,BV,GL,KR,CR,GOST-R, EAC |
| Memory Card Type | Compact Flash |
| Mounting Orientation | Landscape |
| Bezel Color | Silver |
Why Proax for Omron NYE2A-20S11-09WR1300?
Proax is an authorized distributor of Omron NYE2A-20S11-09WR1300. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | NYE2A20S1109WR1300 |
| Pack Size | 1 |
