1SBN030100R1000
Weight
0.073 kg

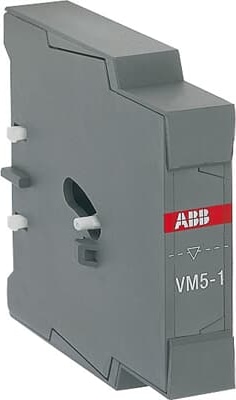

VM5-1 is a mechanical interlock unit used for the mechanical interlocking of two contactors of the A contactor serie, in the case, e.g. of reversing contactors, changeover contactors or star-delta starters. Electrical interlocking is generally provided through additionnal N.C. auxiliary contacts fitted on contactors and wired with the respective contactor's coil terminals.
Documents
Technical Specifications
Dimensions
| Product Net Width | 15 mm |
| Product Net Depth / Length | 71 mm |
| Product Net Height | 70 mm |
| Product Net Weight | 0.066 kg |
Technical
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Suitable for | A9 |
| Suitable for | A12 |
| Suitable for | A16 |
| Suitable for | A26 |
| Suitable for | A30 |
| Suitable for | A40 |
| Suitable for | AL9 |
| Suitable for | AL9Z |
| Suitable for | AL12 |
| Suitable for | AL12Z |
| Suitable for | AL16 |
| Suitable for | AL16Z |
| Suitable for | AL26 |
| Suitable for | AL30 |
| Suitable for | AL40 |
| Suitable for | TAL9 |
| Suitable for | TAL12 |
| Suitable for | TAL16 |
| Suitable for | TAL26 |
| Suitable for | TAL30 |
| Suitable for | TAL40 |
| Suitable for | AX06 |
| Suitable for | AX09 |
| Suitable for | AX12 |
| Suitable for | AX18 |
| Suitable for | AX25 |
| Suitable for | AX32 |
| Suitable for | AX40 |
Why Proax for ABB VM5-1?
Proax is an authorized distributor of ABB VM5-1 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | VM51 |
| Pack Size | 1 |
