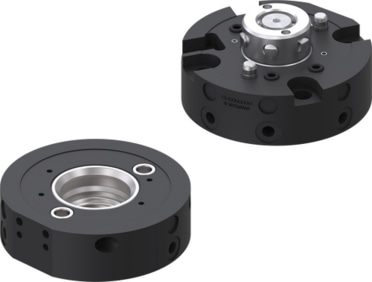

Tool changer
Secure hold during pressure drop The combination of spring loaded and a high gear ratio guarantees them a safe machine Extremely flat design This structure reduces the moment load for your robot to a minimum and makes it possible to use smaller and more affordable sizes Inexhaustible variety of media transfer systems No matter which medium you would like to transmit, we will draw from our wealth of experience in implementing projects and find a solution to suit your needs!
| Connecting flange according EN ISO 9409-1 | TK 50 |
| Type of drive | pneumatical |
| Offset at coupling max. in X,Y [mm] | 1.5 |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | 4 |
| Operating pressure [bar] | 4 ... 10 |
| Installation Size | WWR50 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Flow per connector [l/min] | 150 |
| Recommended handling weight [kg] | 30 |
| Electrical energy transfer | optional |
| Pneumatic energy transfer [Quantity] | 4 |
| Fa [N] | 4000 |
| Weight [kg] | 0.15 |
| Mr [Nm] | 100 |
| My [Nm] | 105 |
| Nominal operating pressure [bar] | 6 |
| Series | WWR |
| Self locking mechanism when locking | mechanical |
| Moment of inertia [kgcm²] | 0.7 |
| Repetition accuracy in X, Y [mm] | 0,02 |
| Repetition accuracy in Z [mm] | 0.01 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer WWR50L-B?
Proax is the authorized distributor of Zimmer WWR50L-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | WWR50LB |
| Pack Size | 1 |
