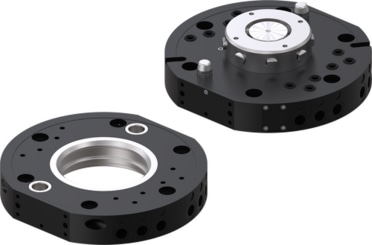

WWR160L-B
Official DistributorBy Zimmer
SKU
ZIMWWR160LB
This product has been discontinued
Pneumatic, ultra-flat tool changer with mechanical self-locking for safe holding during pressure drops. Supports 10 pneumatic ports plus optional electrical and hydraulic transfer. Rated for 300 kg handling weight, 4 to 10 bar operating pressure, and delivers 0.02 mm repeatability (X/Y) and 0.01 mm (Z). Fits TK160 flange, weighs 2.7 kg. Reliable, high-precision option for fast robotic tool changes.
Documents
Technical Specifications
| Connecting flange according EN ISO 9409-1 | TK 160 |
| Type of drive | pneumatical |
| Offset at coupling max. in X,Y [mm] | 2.85 |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | 4 |
| Operating pressure [bar] | 4 ... 10 |
| Installation Size | WWR160 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Flow per connector [l/min] | 500 |
| Recommended handling weight [kg] | 300 |
| Electrical energy transfer | optional |
| Hydraulic energy transfer | optional |
| Pneumatic energy transfer [Quantity] | 10 |
| Fa [N] | 30000 |
| Weight [kg] | 2.7 |
| Mr [Nm] | 2000 |
| My [Nm] | 2200 |
| Nominal operating pressure [bar] | 6 |
| Series | WWR |
| Self locking mechanism when locking | mechanical |
| Moment of inertia [kgcm²] | 132 |
| Repetition accuracy in X, Y [mm] | 0,02 |
| Repetition accuracy in Z [mm] | 0.01 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer WWR160L-B?
Proax is the authorized distributor of Zimmer WWR160L-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | WWR160LB |
| Pack Size | 1 |
