WWR1160F
Official DistributorBy Zimmer

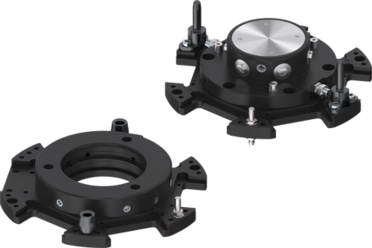

Tool changer
Secure hold during pressure drop A redundant system, created by the combination of spring accumulator and a self locking mechanism, guarantees a safe machine Handling weight from up to one tonne Automated changes can be carried out by this changer with process reliability even with the largest robots Inexhaustible variety of media transfer systems No matter which medium you would like to transmit, we will draw from our wealth of experience in implementing projects and find a solution to suit your needs!
Documents
WWR1000 Series Tool Changers
- Secure hold during pressure drop The combination of spring accumulator and mechanical force transmission ensures that the tool is held securely - even in the event of a sudden loss of pressure in the system.
- High loads for major challenges With load capacities of over 1,000 kg, the tool changer is ideal for use on heavy-duty robots and enables stable, automated changing processes even under the most demanding conditions.
- Inexhaustible variety of media transfer systems Whether pneumatics, vacuum, hydraulics, coolant, electrical signals or load - our modular system allows the integration of a wide variety of media carriers - flexibly adaptable to the most diverse process requirements.
| Connecting flange according EN ISO 9409-1 | TK 160 |
| Type of drive | pneumatical |
| Offset at coupling max. in X,Y [mm] | 3 |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 6 |
| Operating pressure [bar] | 6 ... 8 |
| Installation Size | WWR1160 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Recommended handling weight [kg] | 500 |
| Electrical energy transfer | optional |
| Fluid energy transfer | optional |
| Hydraulic energy transfer | optional |
| Fa [N] | 35000 |
| Weight [kg] | 8.7 |
| Mr [Nm] | 6000 |
| My [Nm] | 6000 |
| Nominal operating pressure [bar] | 6 |
| Series | WWR1000 |
| Self locking mechanism when locking | mechanical |
| Locking stroke [mm] | 1 |
| Repetition accuracy +/- [mm] | 0.02 |
| Air volume per cycle [cm³] | 48 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
