WWR100F-B
Official DistributorBy Zimmer

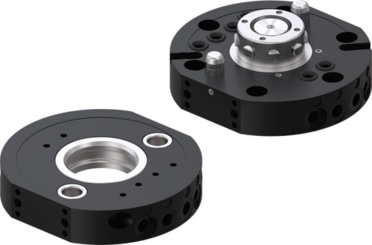

Tool changer
Secure hold during pressure drop The combination of spring loaded and a high gear ratio guarantees them a safe machine Extremely flat design This structure reduces the moment load for your robot to a minimum and makes it possible to use smaller and more affordable sizes Inexhaustible variety of media transfer systems No matter which medium you would like to transmit, we will draw from our wealth of experience in implementing projects and find a solution to suit your needs!
Documents
| Connecting flange according EN ISO 9409-1 | TK 100 |
| Type of drive | pneumatical |
| Offset at coupling max. in X,Y [mm] | 1.85 |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | 4 |
| Operating pressure [bar] | 4 ... 10 |
| Installation Size | WWR100 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Flow per connector [l/min] | 330 |
| Recommended handling weight [kg] | 120 |
| Electrical energy transfer | optional |
| Hydraulic energy transfer | optional |
| Pneumatic energy transfer [Quantity] | 6 |
| Fa [N] | 16000 |
| Joining force [N] | 120 |
| Weight [kg] | 0.99 |
| Release force [N] | 75 |
| Mr [Nm] | 600 |
| My [Nm] | 850 |
| Nominal operating pressure [bar] | 6 |
| Series | WWR |
| Self locking mechanism when locking | mechanical |
| Moment of inertia [kgcm²] | 14 |
| Locking stroke [mm] | 1.2 |
| Repetition accuracy in X, Y [mm] | 0,02 |
| Repetition accuracy in Z [mm] | 0.01 |
| Air volume per cycle [cm³] | 25 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
