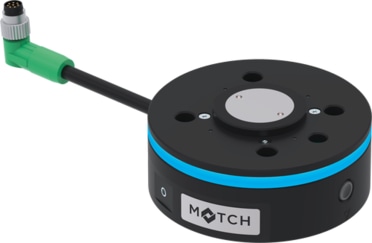

LWR50F-17-05-A
Official DistributorBy Zimmer
SKU
ZIMLWR50F1705A
Weight
0.354 kg
Tool changer
Manual end effector change with one-hand function Automated changeover without external control Integrated signal and media feed-through Optical Connect LED and Connect signal to the higher-level controller Various electrical interfaces, depending on the required functionality Use in combination with LWR loose parts
Documents
Technical Specifications
| Connecting flange according EN ISO 9409-1 | TK 50 |
| Connecting cable | Socket, M8, 8-pole |
| Control | IO-Link |
| Tightening force [N] | 50 |
| Offset at coupling max. in X,Y [mm] | 1 |
| Operating pressure for energy transmission [bar] | Fehlende Variable |
| Operating pressure [bar] | Fehlende Variable |
| Operating temperature [°C] | 5 ... +60 |
| Operating temperature max. [°C] | 60 |
| Operating temperature min. [°C] | 5 |
| Electrical energy transfer | integrated |
| Pneumatic energy transfer | integrated |
| Fa [N] | 500 |
| Weight [kg] | 0.32 |
| Service life in cycles | 100000 |
| Release force [N] | 0 |
| Handling weight max. [kg] | 25 |
| Mr [Nm] | 20 |
| My [Nm] | 40 |
| Suitable for robot type | Yaskawa HC P-Version |
| Protection to IEC 60529 | IP40 |
| Series | LWR |
| Locking stroke [mm] | 1 |
| Repetition accuracy in X, Y [mm] | 0,05 |
| Repetition accuracy in Z [mm] | 0,05 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer LWR50F-17-05-A?
Proax is the authorized distributor of Zimmer LWR50F-17-05-A. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | LWR50F1705A |
| Pack Size | 1 |
