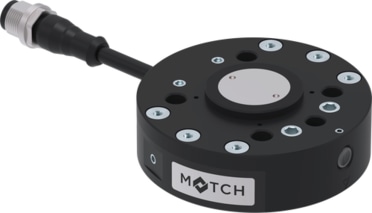

LWR50F-00-04-A
Official DistributorBy Zimmer
SKU
ZIMLWR50F0004A
Weight
0.283 kg
Tool changer
A system for lightweight robots, cobots and conventional robots Standardized robot interface for handling (vacuum and mechanical gripping) PLUG & WORK - Simplification of the communication interface Large variety of end effectors Innovative digital ecosystem Manual exchange with easy-click function Automated changeover without external control in the deposit station
Documents
Technical Specifications
| Connection Type | Connector |
| Connecting flange according EN ISO 9409-1 | TK 50 |
| No. of contacts | 5 |
| Connecting cable | Plug, M12, 5-pole |
| Control | IO-Link |
| Tightening force [N] | 50 |
| Fixing thread | M12 |
| Offset at coupling max. in X,Y [mm] | 1 |
| Operating pressure for energy transmission [bar] | Fehlende Variable |
| Operating pressure [bar] | Fehlende Variable |
| Operating temperature [°C] | 5 ... +60 |
| Operating temperature max. [°C] | 60 |
| Operating temperature min. [°C] | 5 |
| Electrical energy transfer | integrated |
| Pneumatic energy transfer | integrated |
| Fa [N] | 500 |
| Weight [kg] | 0.26 |
| Service life in cycles | 100000 |
| Release force [N] | 0 |
| Handling weight max. [kg] | 25 |
| Mr [Nm] | 20 |
| My [Nm] | 40 |
| Suitable for robot type | ISO TK 50 |
| Protection to IEC 60529 | IP40 |
| Series | LWR |
| Locking stroke [mm] | 1 |
| Repetition accuracy in X, Y [mm] | 0,05 |
| Repetition accuracy in Z [mm] | 0,05 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
