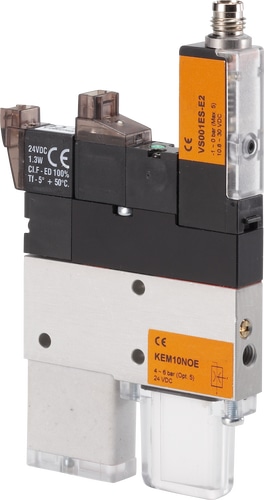

KEM10NOE
Official DistributorBy Zimmer
SKU
ZIMKEM10NOE
Series KE
Compact ejector
Special features Complete solution for easiest installation Integrated valve technology and vacuum monitoring Wide range of outputs Normally open suction valve Electronic vacuum switch (KE15NOE) Digital vacuum switch (KE15NOD, KE25NOD)
Technical Specifications
| Operating pressure [bar] | 4.5 |
| Installation Size | KEM10 |
| Operating temperature [°C] | 0 ... +45 |
| Operating temperature max. [°C] | 45 |
| Operating temperature min. [°C] | 0 |
| Recommended inner hose Ø compressed air [mm] | 2 |
| Nozzle diameter [mm] | 1 |
| Recommended inner hose Ø vacuum [mm] | 4 |
| Vacuum level [%] | 85 |
| Weight [kg] | 0.08 |
| Air consumption blowing [l/min] | 26 |
| Air consumption suction [l/min] | 46 |
| Air consumption suction [m³/h] | 2.8 |
| Series | KE |
| Noise level (suction) [db(A)] | 73 |
| Noise level (free-running) [db(A)] | 76 |
| Max. suction capacity [l/min] | 23 |
| Max. suction capacity [m³/h] | 1.4 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
