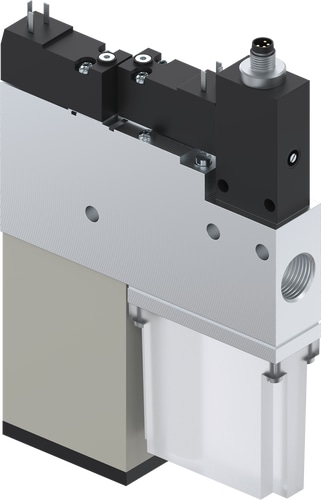

KE25NOE
Official DistributorBy Zimmer
SKU
ZIMKE25NOE
Weight
0.485 kg
Series KE
Compact ejector
Special features Complete solution for easiest installation Integrated valve technology and vacuum monitoring Wide range of outputs Normally open suction valve Electronic vacuum switch (KE15NOE) Digital vacuum switch (KE15NOD, KE25NOD)
Technical Specifications
| Operating pressure max. [bar] | 6 |
| Operating pressure min. [bar] | 5 |
| Operating pressure [bar] | 5 ... 6 |
| Installation Size | KE25 |
| Operating temperature [°C] | 0 ... +45 |
| Operating temperature max. [°C] | 45 |
| Operating temperature min. [°C] | 0 |
| Recommended inner hose Ø compressed air [mm] | 6 |
| Nozzle diameter [mm] | 2.5 |
| Recommended inner hose Ø vacuum [mm] | 9 |
| Vacuum level [%] | 85 |
| Weight [kg] | 0.49 |
| Air consumption blowing [l/min] | 200 |
| Air consumption suction [l/min] | 310 |
| Air consumption suction [m³/h] | 18.6 |
| Series | KE |
| Noise level (suction) [db(A)] | 72 |
| Noise level (free-running) [db(A)] | 82 |
| Max. suction capacity [l/min] | 161 |
| Max. suction capacity [m³/h] | 9.7 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer KE25NOE?
Proax is the authorized distributor of Zimmer KE25NOE. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
