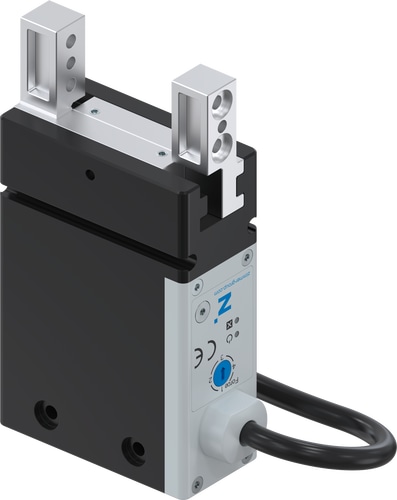

2-jaw parallel gripper
"The electric compact one" Largest stroke in small installation space Do you require a large stroke, due to the fact that you are operating either a form fit gripper or a large range of parts but the installation space and the load capacity of your application is limited? Then this gripper is perfect for you! The simplest activation It is your choice whether you want to control the gripper by means of I/O ports—like a valve—or if you prefer the version with IO-Link. Both have this in common: they are easy to integrate into your control system. Positionability via IO-Link Allows you to position the gripper jaws of the IL-03 and IL-43 variant. In this way, the stroke can be flexibly adapted to the workpiece, which saves time in the process and prevents interfering contours.
| Control | I/O |
| Type of drive | electrical |
| Installation Size | GEP2010 |
| Operating temperature [°C] | 5 ... +60 |
| Operating temperature max. [°C] | 60 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 200 |
| Weight [kg] | 0.3 |
| Gripping force in opening (adjustable) max. [N] | 200 |
| Gripping force in closing (adjustable) max. [N] | 200 |
| Gripping force safety device | Yes |
| Gripping force safety device | mechanical |
| Gripping force max. [N] | 200 |
| Gripping force level 1 [N] | 50 |
| Gripping force level 2 [N] | 100 |
| Gripping force level 3 [N] | 150 |
| Gripping force level 4 [N] | 200 |
| Stroke per jaw [mm] | 10 |
| Integrated position sensing | Analog 0 to 10 V |
| Length of the gripper fingers max. [mm] | 80 |
| Minimum positioning path per jaw [mm] | 0.5 |
| Mr [Nm] | 7 |
| Mx [Nm] | 7 |
| My [Nm] | 5.5 |
| Nominal gripping force [N] | 200 |
| Opening time [s] | 0.19 |
| Clean room applications according to DIN EN ISO 14644-1 | 2 |
| Current consumption max. [A] | 1 |
| Protection to IEC 60529 | IP40 |
| Series | GEP2000 |
| Self locking mechanism | mechanical |
| Voltage [V] | 24 |
| Control time [s] | 0,03 |
| Closing time [s] | 0.19 |
| Closing time / Opening time level 1 [s] | 0.3 / 0.3 |
| Closing time / Opening time level 2 [s] | 0.25 / 0.25 |
| Closing time / Opening time level 3 [s] | 0.22 / 0.22 |
| Closing time / Opening time level 4 [s] | 0.19 / 0.19 |
| Repetition accuracy +/- [mm] | 0.02 |
| Certification | |
| Dead weight of mounted gripper finger max. [kg] | 0.1 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
