FWR50F-00-A
Official DistributorBy Zimmer

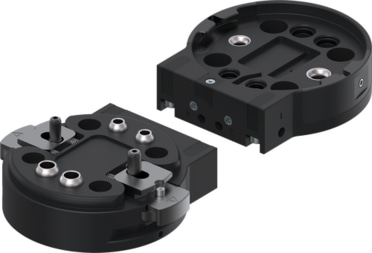

Tool changer
Automated tool change without external activation In interaction with the storage station, the changer is actuated mechanically during retraction. As a result, no additional power supply is required for the change operation. Manual tool change The sizes FWR40 and FWR50 can be opened with just one hand. If this is not desired, you can lock the actuation manually. Optional media transmission Adapt the tool changer to your application. With the energy elements of the WER1000 and WER2000 series, you can transmit a variety of media with standard connections!
Documents
| Connecting flange according EN ISO 9409-1 | TK 50 |
| Tightening torque [Nm] | 4 |
| Type of drive | automatic |
| Tightening force [N] | 70 |
| Offset at coupling max. in X,Y [mm] | 2 |
| Offset at coupling max. in X,Y [°] | 1.5 |
| Operating pressure for energy transmission [bar] | -0.6 ... 6 |
| Operating pressure for energy transfer max. [bar] | 6 |
| Operating pressure for energy transfer min. [bar] | -0.6 |
| Operating pressure [bar] | Fehlende Variable |
| Installation Size | FWR50 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Flow per connector G1/8″ [l/min] | 650 |
| Flow per connector M5 [l/min] | 170 |
| Electrical energy transfer | optional |
| Pneumatic energy transfer [Quantity] | 4 |
| Fa [N] | 1200 |
| Joining force [N] | 0 |
| Weight [kg] | 0.26 |
| Release force [N] | 0 |
| Handling weight max. [kg] | 16 |
| Mr [Nm] | 60 |
| My [Nm] | 60 |
| Protection to IEC 60529 | IP44 |
| Series | FWR |
| Moment of inertia [kgcm²] | 2.41 |
| Locking stroke [mm] | 0.6 |
| Tool weight max. [kg] | 7 |
| Repetition accuracy in X, Y [mm] | 0,03 |
| Repetition accuracy in Z [mm] | 0,02 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
