1329608
Official DistributorSKU
PHX1329608
MPN
D-XTV 10
Weight
0.005 kg
Series D-XTV

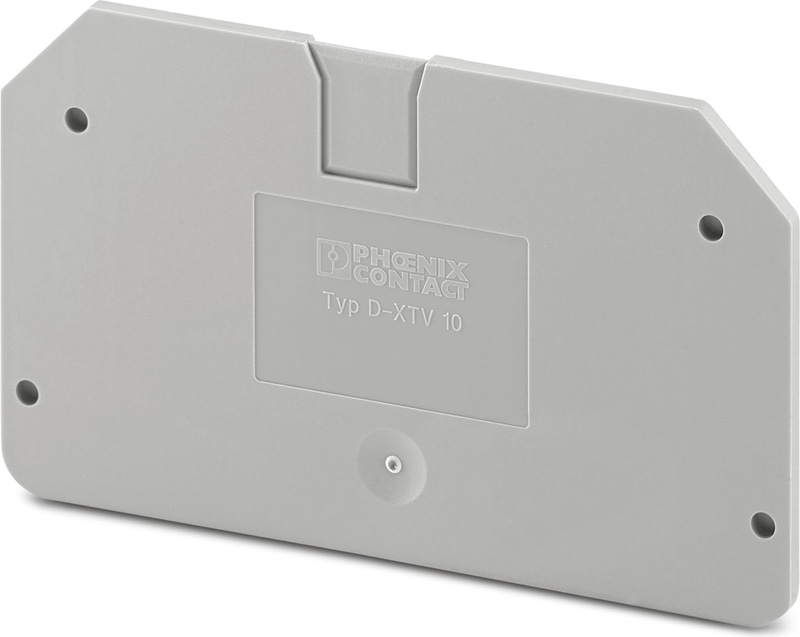

D-XTV 10 - End cover
End cover, depth: 42.6 mm, width: 2.2 mm, height: 72 mm, color: gray
Documents
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 2.2 mm |
| Height | 72 mm |
| Depth | 42.6 mm |
| Depth on NS 35/7,5 | 50.1 mm |
| Depth on NS 35/15 | 57.6 mm |
Why Proax for Phoenix Contact 1329608?
Proax is an authorized distributor of Phoenix Contact 1329608 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
