1329516
Official DistributorSKU
PHX1329516
MPN
D-XTV 6-TWIN
Weight
0.005 kg
This product is Not Cancellable/Not Returnable
Series D-XTV

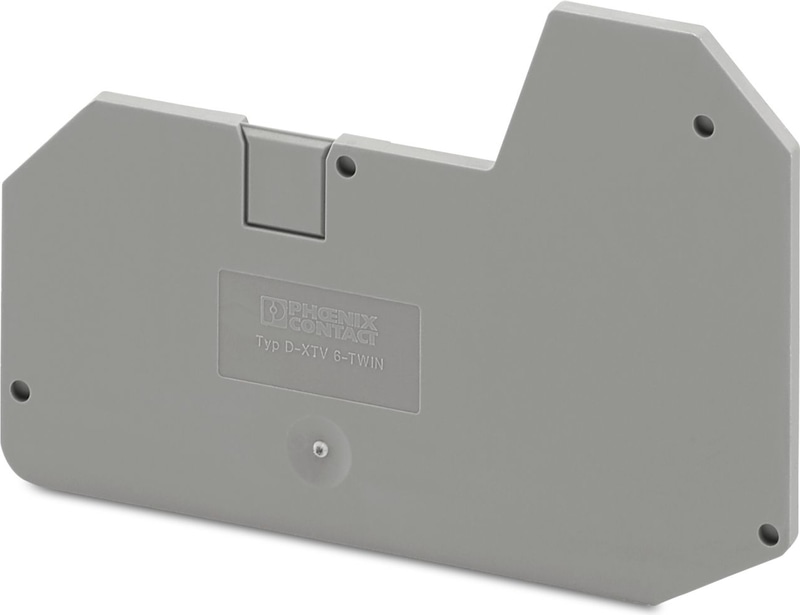

D-XTV 6-TWIN - End cover
End cover, depth: 51.4 mm, width: 2.2 mm, height: 76.7 mm, color: gray
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 2.2 mm |
| Height | 76.7 mm |
| Depth | 51.4 mm |
| Depth on NS 35/7,5 | 58.9 mm |
| Depth on NS 35/15 | 66.4 mm |
Why Proax for Phoenix Contact 1329516?
Proax is an authorized distributor of Phoenix Contact 1329516 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
