1207052
Official DistributorSKU
PHX1207052
MPN
LS-EMLP-V4A (140X100) 1
Weight
0.149 kg
Series LS-EMLP-V4A

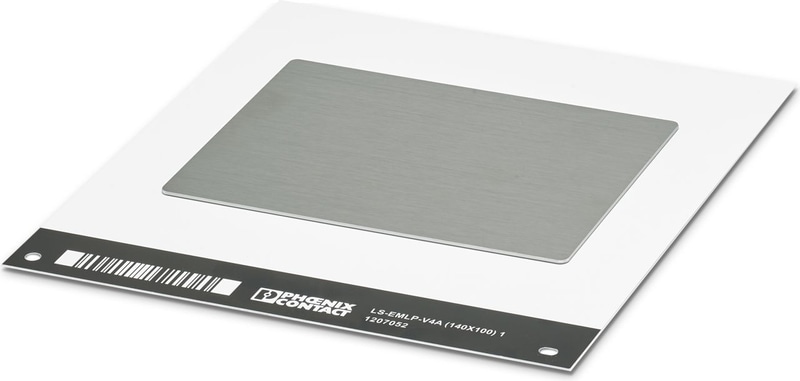

LS-EMLP-V4A (140X100) 1 - Device marker
Device marker, Stainless steel label, silver, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, mounting type: adhesive, Number of individual labels: 1, text field height: 100 mm, text field width: 140 mm
- Stainless steel stick-on device marking
- Easy-to-clean and permanent identification that also meets stringent hygiene requirements
- High resistance to corrosion, acids, and temperatures
Documents
Technical Specifications
Product properties
| Type | Laser sheet |
Marking
| Number of individual labels | 1 |
| Identification technology | Direct laser marking |
Mounting
| Mounting Type | adhesive |
Material specifications
| RoHS Compliant | yes |
| Adhesive strength | 250 µm |
| Adhesive | Acrylic |
| Color | silver |
| Material | V4A (1.4404; AISI 316L) |
| Components | free from silicone, halogen, and cadmium |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
Scratch test for the determining scratch resistance
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
Tesafilm test
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Specification | IEC 60068-2-2:2007-07 |
| Result | Test passed |
| Duration | 240 h |
| Temperature for testing | 250 °C |
Temperature resistance
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 225 °C (250 °C) | Test passed |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| Acetone (99 %) [CAS No. 67-64-1] | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 (following) |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 250 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 12 months |
Dimensions
| Width | 140 mm |
| Text field width | 140.00 mm |
| Text field height | 100.00 mm |
| Length | 100 mm |
| Material strength | 1.00 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
