1027217
Official DistributorSKU
PHX1027217
MPN
LS-EMLP-AL (22X22) BK
Weight
0.08 kg

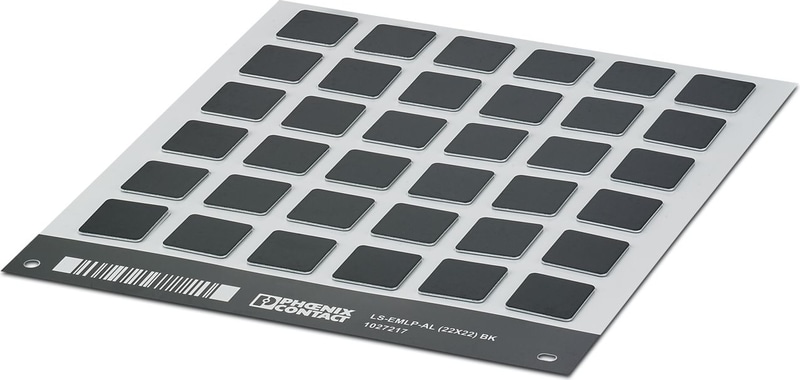

LS-EMLP-AL (22X22) BK - Device marker
Device marker, Aluminum label, black, unlabeled, can be labeled with: TOPMARK LASER, TOPMARK NEO, mounting type: adhesive, Number of individual labels: 36, text field height: 22 mm, text field width: 22 mm
- Aluminum equipment marking for sticking on
- Identification made from metal, high strength in a lightweight design
- Increased durability due to the decoratively anodized surface
Documents
Technical Specifications
Product properties
| Area of application | SIEMENS: SIRIUS ACT housing |
| Type | Laser sheet |
Marking
| Number of individual labels | 36 |
| Identification technology | Direct laser marking |
Mounting
| Mounting Type | adhesive |
Material specifications
| RoHS Compliant | yes |
| Adhesive strength | 250 µm |
| Adhesive | Acrylic |
| Color | black (RAL 9005) |
| Material | Aluminum |
| Components | free from silicone, halogen, and cadmium |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Specification | ISO 9227:2012-05 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 12 months |
Dimensions
| Width | 22 mm |
| Text field width | 22.00 mm |
| Text field height | 22.00 mm |
| Length | 22 mm |
| Material strength | 0.80 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Accessories
