1163798
Official DistributorSKU
PHX1163798
MPN
SPE-T1-STSM-180
Weight
0.002 kg
Series SPE-T1

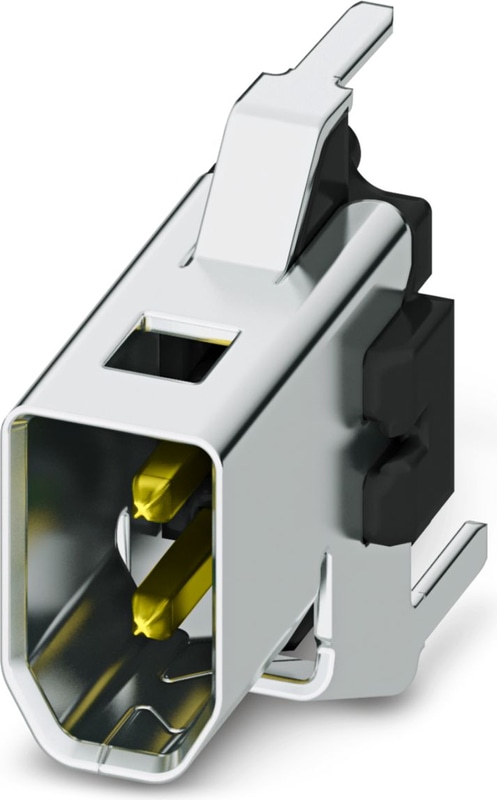

SPE-T1-STSM-180 - SPE PCB connector
SPE PCB connector, design: IEC 63171-2, degree of protection: IP20, number of positions: 2, 1 Gbps, CAT B (ISO/IEC 63171), material: Metal, connection method: THR solder connection, cable outlet: straight, Single Pair Ethernet
- Compact design for maximum space savings
- Connectors in accordance with IEC 63171-2
- THR solderable
- Robust industrial design
- 360° shielding
- Data transmission up to 600 MHz
Documents
Technical Specifications
Product properties
| Type | SPE |
| Sensor Type | Single Pair Ethernet |
| Number of Positions | 2 |
| Connection profile | SPE |
| Type of packaging | Tape and Reel |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/2) | 72 V DC |
| Rated surge voltage | 2250 V DC |
| Rated surge voltage (III/2) | 1500 V |
| Rated current | 4 A |
| Frequency Range | 600 MHz |
| Insulation resistance | > 1 TΩ |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT B (IEC 63171) |
| Transmission Speed | 1 Gbps |
| Power transmission | PoDL |
Connection technology
| Connection Method | THR solder connection |
Dimensions
| Width | 5 mm |
| Height | 11.4 mm |
| Length | 9.3 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Contact Material | Copper alloy |
| Contact surface material | Ni/Au |
| Contact carrier material | LCP |
Cable/line
| Test voltage Core/Core | 1000 V DC |
| Test voltage Core/Shield | 2250.00 V DC |
| Halogen-free | yes |
| Resistance to Oil | yes |
| Flame resistance | UL 94 V0 |
Mechanical data
| Insertion/withdrawal cycles | ≥ 750 |
| Insertion force per signal contact | < 1.50 N |
| Extraction force per signal contact | < 1.5 N |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | UL 94 V0 |
| Resistance to Oil | yes |
Mounting
| Mounting Type | THR soldering |
Processing notes
| Moisture Sensitive Level | MSL 1 |
Why Proax for Phoenix Contact 1163798?
Proax is an authorized distributor of Phoenix Contact 1163798 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 300 |
