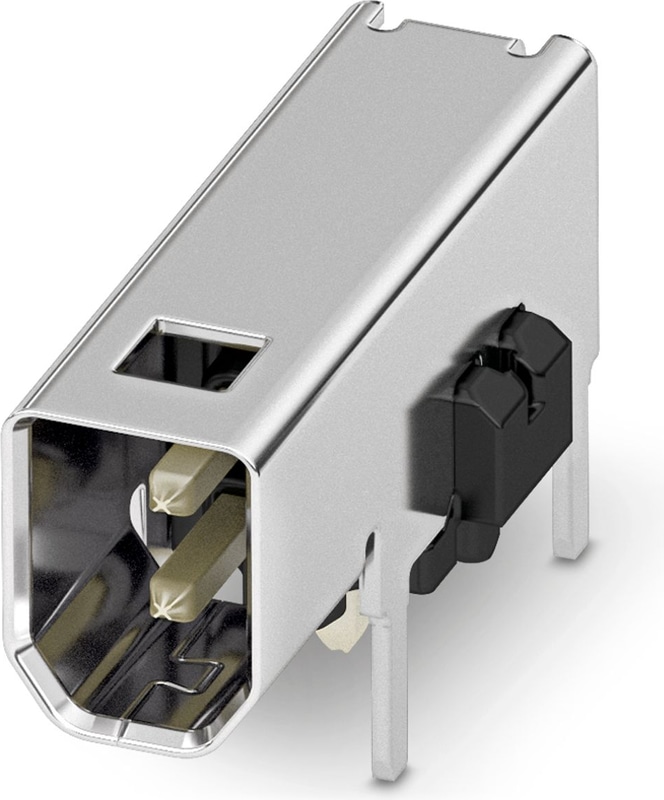

SPE-T1-STRM-90 - SPE PCB connector
SPE PCB connector, design: IEC 63171-2, degree of protection: IP20, number of positions: 2, 1 Gbps, CAT B (ISO/IEC 63171), material: Metal, connection method: THR solder connection, cable outlet: straight, Single Pair Ethernet
- Compact design for maximum space savings
- Connectors in accordance with IEC 63171-2
- THR solderable
- Robust industrial design
- 360° shielding
- Data transmission up to 600 MHz
Documents
Technical Specifications
Product properties
| Type | SPE |
| Sensor Type | Single Pair Ethernet |
| Number of Positions | 2 |
| Connection profile | SPE |
| Type of packaging | Tape and Reel |
| Pitch | 7.62 mm |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/2) | 72 V DC |
| Rated surge voltage | 2250 V DC |
| Rated surge voltage (III/2) | 1500 V |
| Rated current | 4 A |
| Frequency Range | 600 MHz |
| Insulation resistance | > 1 TΩ |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT B (IEC 63171) |
| Transmission Speed | 1 Gbps |
| Power transmission | PoDL |
Connection technology
| Connection Method | THR solder connection |
Dimensions
| Width | 5 mm |
| Height | 8.35 mm |
| Length | 14.2 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Contact Material | Copper alloy |
| Contact surface material | Ni/Au |
| Contact carrier material | LCP |
Cable/line
| Test voltage Core/Core | 1000 V DC |
| Test voltage Core/Shield | 2250.00 V DC |
| Halogen-free | yes |
| Resistance to Oil | yes |
| Flame resistance | UL 94 V0 |
Mechanical data
| Insertion/withdrawal cycles | ≥ 750 |
| Insertion force per signal contact | < 1.50 N |
| Extraction force per signal contact | < 1.5 N |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | UL 94 V0 |
| Resistance to Oil | yes |
Mounting
| Mounting Type | THR soldering |
Processing notes
| Moisture Sensitive Level | MSL 1 |
