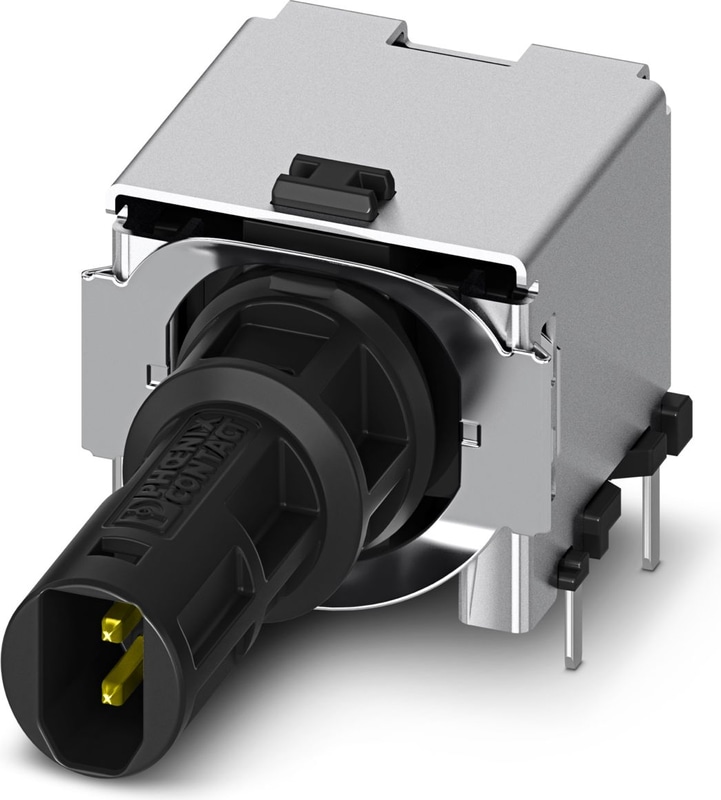

SPE-T1-M8MRM-90 - SPE PCB connector
SPE PCB connector, design: IEC 63171-5, degree of protection: IP65/IP67, number of positions: 2, CAT B (ISO/IEC 63171), material: Metal, connection method: THR solder connection, Single Pair Ethernet
- Connectors in accordance with IEC 63171-2
- THR solderable
- Data transmission up to 600 MHz
- Packaging available for automated pick and place assembly
Technical Specifications
Product properties
| Type | SPE |
| Sensor Type | Single Pair Ethernet |
| Number of Positions | 2 |
| Connection profile | SPE M8 |
| Type of packaging | Tape and Reel |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/2) | 72 V DC |
| Rated surge voltage | 2250 V DC |
| Rated surge voltage (III/2) | 1500 V |
| Rated surge voltage | 1000 V DC |
| Rated current | 4 A |
| Frequency Range | 5 Hz ... 500 Hz |
| Insulation resistance | > 1 TΩ |
| Contact resistance | 20 mΩ (in accordance with IEC 63171) |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT B (ISO/IEC 63171) |
| Transmission Speed | 1 Gbps |
| Power transmission | PoDL |
Output data
| Transmission frequency | 600.00 MHz |
Connection technology
| Connection Method | THR solder connection |
Dimensions
| Width | 15.2 mm |
| Height | 14.5 mm |
| Length | 31.6 mm |
| Installed height | 12.10 mm |
| Orientation to | 90.00 ° |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Contact Material | Copper alloy |
| Contact surface material | Gold |
| Contact carrier material | LCP |
Cable/line
| Test voltage Core/Core | 1000 V DC |
| Test voltage Core/Shield | 2250.00 V DC |
| Halogen-free | yes |
| Resistance to Oil | yes |
| Flame resistance | yes |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
| Insertion force per signal contact | < 30.00 N (in accordance with IEC 63171) |
| Extraction force per signal contact | < 30 N (in accordance with IEC 63171) |
Test specification
| Specification | IEC 63171 |
| Cold stress | -40°C |
| Thermal stress | 85°C |
| Corrosive stress | IEC 60512-11-7 |
| Specification | IEC 60068-2-6 |
| Frequency | 5-500 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.75 mm |
| Acceleration | 100.00 m/s² |
| Test duration | 20.00 s |
| Specification | IEC 60068-2-27 |
| Acceleration | 500.00 m/s² |
| Number of shocks per direction | 18.00 |
Ambient conditions
| Degree of Protection | IP65/IP67 (in combination with M8 housing screw connection) |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | yes |
| Resistance to Oil | yes |
Mounting
| Mounting Type | THR soldering |
Processing notes
| Process | Reflow/wave soldering |
| Moisture Sensitive Level | MSL 1 |
| Solder cycles in the reflow | 3 |
