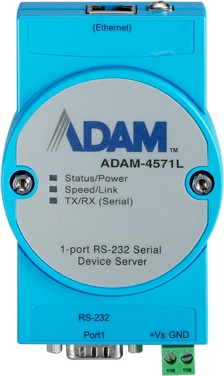

The ADAM-4571L provides a robust and cost effective way to network-enable equipment in an industrial automation environment. It also brings the advantages of remote management and data accessibility to RS-232 devices. The transmission speed of the ADAM-4571L is up to 921.6 Kbps, meeting the demands for high-speed data exchanges. By encapsulating serial data and transporting it over Ethernet, the ADAM-4571L allows virtual serial links over TCP/IP networks. After Advantech Serial Device Server Configuration Utility installation, standard serial operation calls are transparently redirected to the serial device server, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. The ADAM-4571L comes with a Windows configuration utility. The configuration tool can auto-detect all serial device servers on the local network, and let you adjust all settings. The configuration utility merges the port mapping function to helps you to setup Virtual COM ports for Windows 2000/XP/Vista(x86) platform. This helps you configure all ports to meet your needs.
Features
- Supports RS-232 serial communication
- Supports baud rate up to 921.6 kbps
- Provides COM port redirection (Virtual COM) mode
- Allows a max. of 5 hosts to access one serial port
- Built-in 15 KV ESD protection for all serial signals
- Provides 10/100 Mbps auto-sensing Ethernet port
- Supports auto re-connection function
- Supports Windows 2000/XP/Vista drivers
- Supports remote update firmware
Documents
Technical Specifications
Certification
| EMC | CE, FCC |
| EMI | EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| EMS | EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024 |
| Freefall | NA |
Environment
| Humidity (Operating Range) | 5~95% RH |
| Temperature (Min. Operating) | -10°C (14°F) |
| Temperature (Max. Operating) | 60°C (140°F) |
| Temperature (Operating Range) | -10 ~ 60°C (14 ~ 140°F) |
| Temperature (Storage Range) | -20 ~ 80°C (-4 ~ 176°F) |
Ethernet Communication
| RJ-45 Port Connector Type | RJ-45 |
| Ethernet Standard | IEEE 802.3 , 802.3u |
| RJ-45 Port Number | 1 |
| RJ-45 Transmission Speed | 10/100 Mbps |
Mechanism
| Dimensions (W x H x D) | 70 x 112 x 25 mm |
| Enclosure (Plastic) | Yes |
| IP Rating | IP30 |
| Mounting (DIN-rail) | Yes |
| Mounting (Wall) | Yes |
| Weight | 125 g |
Power
| Power consumption | 2.5W |
| Power Input (DC) | 10 ~ 30 VDC |
| Power Operating Current | 0.3A @ 12 V |
Serial Communication
| Serial Port Connector Type | RJ48 |
| Serial Port Number | 1 |
| RS-232 | Yes |
| Baud Rate | 50 ~ 921.6 Kbps |
Software
| Configuration | Windows utility, Web Browser |
| Driver | Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
| Operation Mode | Virtual COM, TCP/UDP server TCP/UDP client |
Warranty
| Warranty Period | 5 years |
