Official DistributorSKU
MPN
LPT 16/ 2-10,0-ZB
Weight
0.024 kg
Series LPT

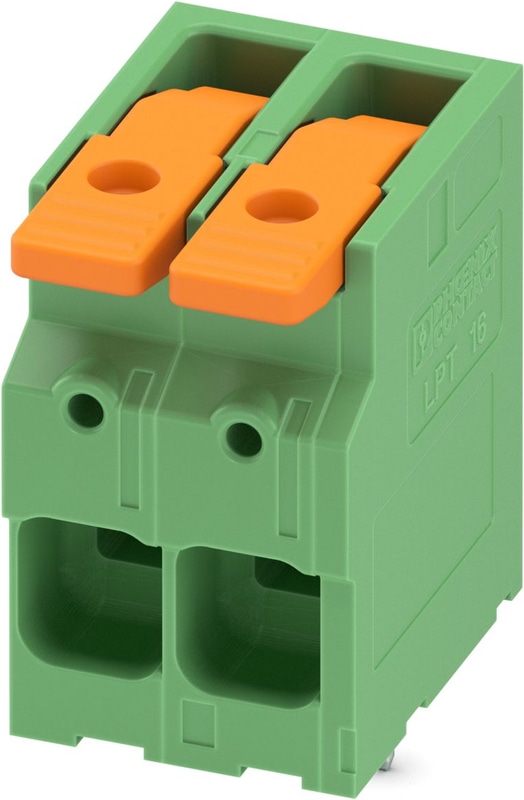

LPT 16/ 2-10,0-ZB - PCB terminal block
Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: LPT 16/, pitch: 10 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Clear lever positions provide reliable feedback on opened or closed clamping spaces
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
- Intuitive operation, thanks to a color-coded actuation lever
Documents
Technical Specifications
Product properties
| Product family | LPT 16/ |
| Product line | COMBICON Terminals XL |
| Number of Positions | 2 |
| Pitch | 10 mm |
| Number of Connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Pin layout | Zigzag pinning W |
Electrical properties
| Nominal current IN | 76 A |
| Nominal voltage UN | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
Connection technology
| Nominal cross section | 16 mm² |
Conductor connection
| Connection Method | Lever Push-in connection |
| Conductor cross section rigid | 0.75 mm² ... 16 mm² (Conductor connection with open terminal point) |
| Conductor cross section rigid | 1.5 mm² ... 16 mm² (Push-in connection) |
| Single-conductor/terminal point multi-stranded | 0.75 mm² ... 16 mm² |
| Conductor cross section flexible | 0.75 mm² ... 25 mm² |
| Conductor cross section AWG | 18 ... 4 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.75 mm² ... 16 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.75 mm² ... 16 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 4 mm² ... 6 mm² |
| Stripping length | 18 mm ... 20 mm |
Mounting
| Mounting Type | Wave soldering |
| Pin layout | Zigzag pinning W |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (10 - 16 µm Sn) |
| Metal surface soldering area (top layer) | Tin (10 - 16 µm Sn) |
Material data - housing
| Color (Housing) | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Material data – actuating element
| Color (Actuating element) | orange (2003) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Pitch | 10 mm |
| Width [w] | 21.9 mm |
| Height [h] | 39.6 mm |
| Length [l] | 32 mm |
| Installed height | 36 mm |
| Solder pin length [P] | 3.6 mm |
| Pin dimensions | 1 x 1 mm |
PCB design
| Hole diameter | 1.7 mm |
Test for conductor damage and slackening
| Specification | IEC 60999-1:1999-11 |
| Result | Test passed |
Pull-out test
| Specification | IEC 60999-1:1999-11 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.75 mm² / solid / > 30 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.75 mm² / flexible / > 30 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 16 mm² / solid / > 100 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 25 mm² / flexible / > 135 N |
Temperature-rise test
| Specification | IEC 60947-7-4:2019-01 |
| Requirement temperature-rise test | The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. |
Short-time withstand current
| Specification | IEC 60947-7-4:2019-01 |
Insulation resistance
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | > 5 MΩ |
Air clearances and creepage distances |
| Specification | IEC 60947-7-4:2019-01 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum creepage distance (III/2) | 8 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum creepage distance (II/2) | 5.5 mm |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Glow-wire test
| Specification | IEC 60695-2-10:2013-04 |
| Temperature | 850 °C |
| Time of exposure | 5 s |
Aging
| Specification | IEC 60947-7-4:2019-01 |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | packed in cardboard |
