1076342
Official DistributorSKU
PHX1076342
MPN
IFS-V8C-RS232-DATCABLE
Weight
0.098 kg
This product is Not Cancellable/Not Returnable

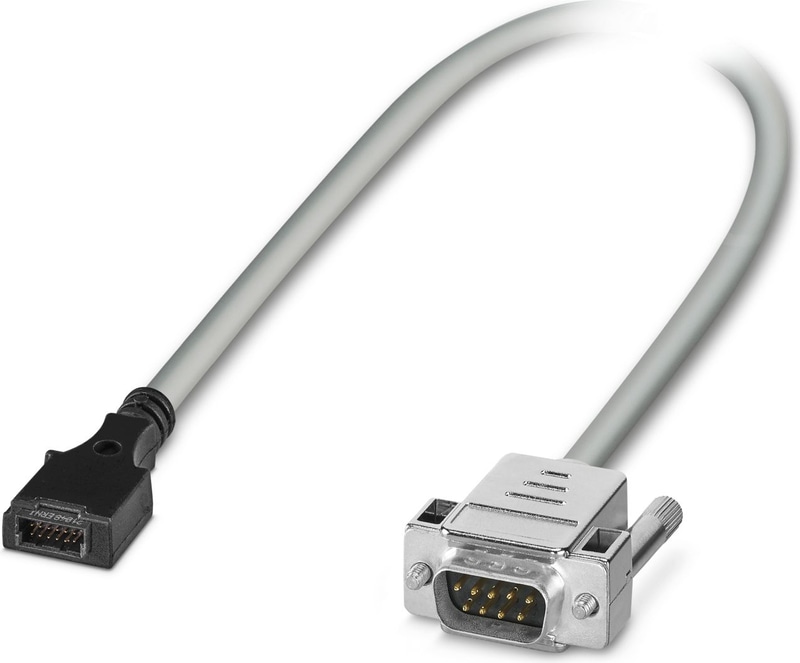

IFS-V8C-RS232-DATCABLE - Cable
Data cable for RS-232 communication between the PLC logic logic modules and the BTP 2000 device series touch panels. Cable length: 2 m
Documents
Technical Specifications
Notes
| Assembly note | The 12-position molded connector is used for connecting to the memory connection socket on PLC logic devices. The 9-position D-SUB male connector strip is connected with the COM female connectors on the BTP2000 touch panels. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Dimensions
| Length | 2 m |
Connection data
| Connection Method | IFS data port |
| Number of Connections | 1 |
| Number of Positions | 12 |
| Connection in acc. with standard | IEC 60807-2 |
| Connection in acc. with standard | DIN 41652 |
| Connection Method | D-SUB pin strip |
| Screw thread | UNC 4-40 |
| Number of Connections | 1 |
| Number of Positions | 9 |
Cable/line
| Cable Length | 2 m |
| Number of Positions | 4 |
| Shielded | yes |
| Conductor structure signal line | 7x |
| AWG Signal Line | 26 |
| Conductor Cross Section | 4x 0.14 mm² |
| External Cable Diameter | approx. 4.70 mm |
| Outer sheath, material | PVC |
| External sheath, color | gray |
| Conductor material | Tin-plated Cu litz wires |
| Flame resistance | IEC 60332-1 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Why Proax for Phoenix Contact 1076342?
Proax is an authorized distributor of Phoenix Contact 1076342 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
