Official DistributorBy ABB
SKU
MPN
1SFA664002R4001
Weight
0.349 kg

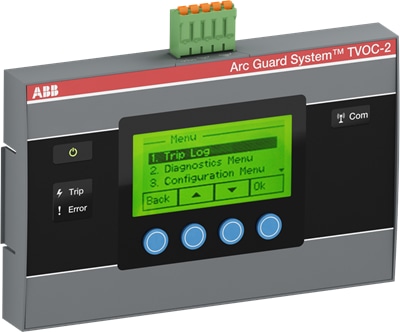

The TVOC-2-COM is a communication HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed or if communication is required. The added COM module can be mounted on the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. The COM module uses communication protocol Modbus RTU which can be connected to ABB Ability™ Electrical Distribution Control System or other control system. Accessories that comes with the unit are mounting nut, gasket and blank front label.
Technical Specifications
Dimensions
| Product Net Width | 130 mm |
| Product Net Height | 82 mm |
| Product Net Depth / Length | 27 mm |
| Product Net Weight | 0.115 kg |
Additional Information
| Additional Information | ARC MONITOR TVOC-2 COM |
| Mounting Type | Mounted on main unit or cabinet door |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Power Loss | 1 W |
| Product Main Type | TVOC-2 |
| RoHS Date | 1009 1 |
| Suitable for | TVOC-2 |
| Terminal Type | Screw Terminals |
Why Proax for ABB TVOC-2-COM?
Proax is an authorized distributor of ABB TVOC-2-COM and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | TVOC2COM |
| Pack Size | 1 |
