Official DistributorBy ABB
SKU
MPN
1SFA664002R3001
Weight
0.114 kg

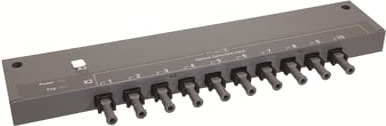

The extension unit TVOC-2-E3 can be assembled on the TVOC-2 main unit to increase the number of detector inputs. There are 10 detector inputs per extension unit E3 and up to 2 extension units can be added to the main unit, creating 30 detector inputs in total. Only TVOC-2-DP60 60 m cable detector can be used with the E3 extension unit.
Technical Specifications
Dimensions
| Product Net Width | 230 mm |
| Product Net Height | 50 mm |
| Product Net Depth / Length | 25 mm |
| Product Net Weight | 0.114 kg |
Additional Information
| Additional Information | ARC MONITOR TVOC-2 EXTENSION FOR 60M CABLE |
| Mounting Type | Mounted on main unit |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Power Loss | 1 W |
| Product Main Type | TVOC-2 |
| RoHS Date | 1009 1 |
| Suitable for | TVOC-2 |
