MS116-4.0
Official DistributorBy ABB

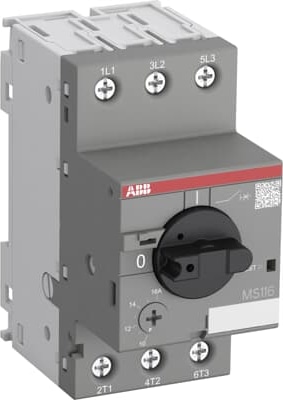

The MS116-4.0 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 4.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for
a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
Supplier Information - USINY
| Lead Time | 21 day |
| Made to Order | No |
| Product Sales Status | Inactive |
| Quote Only | No |
| Warranty Return | Product under warranty must be returned |
Additional Information
| ABB Type Designation | - |
| Country or Territory of Origin | United States |
| Customs tariff number | 8536504000 |
| Frame Size | Undefined |
| Gross Weight | 0.272 kg |
| Invoice Description | 3P MMP 2.5-4.0A RANGE |
| Made to Order | No |
| Minimum Order Quantity | 0 EA |
| Order Multiple | 0 EA |
| Part Type | New |
| Product Name | - |
| Product Net Weight | 0 kg |
| Product type | Undefined |
| Quote Only | No |
| Replacement Product ID (NEW) | 1SAM250000R1008 |
| Selling Unit of Measure | each |
Why Proax for ABB MS116-4.0?
Proax is an authorized distributor of ABB MS116-4.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | MS11640 |
| Pack Size | 1 |
