Official DistributorBy ABB
SKU
MPN
1SAM250005R1013
Weight
0.345 kg

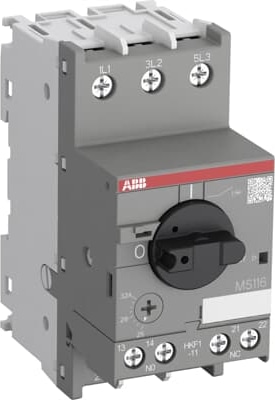

The MS116-20-HKF1-11 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 20.0 A and a pre-assembled front mounted auxiliary contact HKF1-11. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 10 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Height | 97.8 mm |
| Product Net Depth / Length | 85.4 mm |
| Product Net Weight | 0.326 kg |
Technical
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (440 V AC) 3 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V AC) 3 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (690 V AC) 2 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 16 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 16 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V AC) 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 300 A |
| Setting range | 16 ... 20 A |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 7.5 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 7.5 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 20 A |
| Rated Operational Current AC-3 (Ie) | 20 A |
| Rated Operational Current AC-3e (Ie) | 20 A |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions per Pole 1.5 ... 2.3 W |
| Number of Poles | 3 |
| Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 A |
| Degree of Protection | Housing IP20 |
| Degree of Protection | Main Circuit Terminals IP10 |
| Pollution degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm² |
| Connecting Capacity Main Circuit | Flexible 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Flexible 1/2x 2.5 ... 6 mm² |
| Connecting Capacity Main Circuit | Rigid 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Rigid 1/2x 2.5 ... 6 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 0.75 ... 1.5 mm² |
| Connecting Capacity Auxiliary Circuit | Rigid 1/2x 1 ... 1.5 mm² |
| Tightening torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Tightening torque | Main Circuit 2 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Wire Stripping Length | Main Circuit 10 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm |
| Minimum Mounting Distance | Electrical Conductive Board, Vertical 75 mm |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 0 mm |
| Minimum Mounting Distance | Other Device Same Type, Vertical 150 mm |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-2 |
| Standards | IEC/EN 60947-4-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
| Remarks | For detailed specification see installation instruction |
Technical UL/CSA
| Short-circuit current rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 18 kA |
| Short-circuit current rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kA |
| Short-circuit current rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 18 kA |
| Short-circuit current rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 5 kA |
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 250 V AC/DC |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 5 Hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 5 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 5 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 10 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 15 Hp |
| Full Load Amps Motor Use | (200 V AC) Three Phase 17.5 A |
| Full Load Amps Motor Use | (208 V AC) Three Phase 16.7 A |
| Full Load Amps Motor Use | (220 ... 240 V AC) Three Phase 15.2 A |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 10 A |
| Full Load Amps Motor Use | (550 ... 600 V AC) Three Phase 15 A |
| Locked Rotor Amps | (200 V AC) Three Phase 105.8 A |
| Locked Rotor Amps | (208 V AC) Three Phase 102 A |
| Locked Rotor Amps | (220 ... 240 V AC) Three Phase 92 A |
| Locked Rotor Amps | (440 ... 480 V AC) Three Phase 81 A |
| Locked Rotor Amps | (550 ... 600 V AC) Three Phase 93 A |
| General Use Rating UL/CSA | (600 V AC) 20 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-8 AWG |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1/2x 16-8 AWG |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 1/2x 16-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Tightening Torque UL/CSA | Main Circuit 18 in·lb |
| Contact Rating UL/CSA | B300 |
| Contact Rating UL/CSA | R300 |
