Technical Specifications
Additional Information
| ABB Type Designation | 1HP,3450RPM,3PH,60HZ,56C,3516M,TEFC |
| Ambient Temperature | 40 °C |
| Bearing | 6205 |
| Bearing | Ball |
| Bearing NDE | 6203 |
| Bearing NDE | Ball |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | VEM3545-5 |
| Certification Agency | CSA |
| Certification Agency | CSA EEV |
| Certification Agency | UR |
| Country of Origin | United States (US) |
| Customs tariff number | 85015100 |
| Dimension Diagram | 35LYA013 |
| Drive End Flange Type | C-Face |
| Duty Time | 60 Min |
| Efficiency Level | 2015 Small Motor Standard |
| Efficiency Level | IE3 |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Enclosure Type | TEFC |
| ETIM 7 | EC001851 - Electric motor |
| Frame Material | Steel |
| Frame Size | 56 |
| Frequency (f) | 60 Hz |
| Global Commercial Alias | VEM3545-5 |
| Gross Volume | 3496.049 in³ |
| Gross Weight | 12.247 kg |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| Insulation Class | F |
| Invoice Description | 1HP,3450RPM,3PH,60HZ,56C,3516M,TEFC,F1,N |
| Made to Order | No |

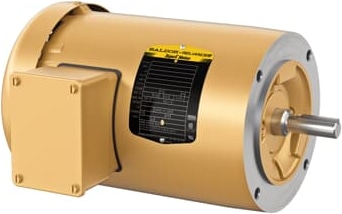

| Medium Description | General Purpose 3PH Enclosed, 1 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEM3545-5) |
Additional Information
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Footless |
| Motor Frame Size | 56C |
| Motor Frame Suffix | C |
| Mounting Orientation | Horizontal |
| Mounting Position | F1 |
| NEMA Design Code | B |
| Number of phases | 3 |
| Number of Poles | 2 |
| Number of Poles (High) | 2 |
| Number of Speeds | Single Speed |
| Order Multiple | 1 piece |
| Output Power | 1 Hp |
| Product Net Depth / Length | 19.375 in |
| Product Net Height | 13.123 in |
| Product Net Weight | 12.247 kg |
| Product Net Width | 13.75 in |
| Product type | Undefined |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 in |
| Short Description | 1 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 575 V |
| Standards | NEMA |
| Starting of Motor | Direct On Line |
| Stocked At (Warehouses) | China |
| Stocked At (Warehouses) | Alabama, United States |
| Stocked At (Warehouses) | Alaska, United States |
| Synchronous Speed (vsyn) | 3600 r/min |
| Type of Duty | Continuous |
| UNSPSC | 26101112 |
| Voltage Rating | 575 V |
