6742600
Official DistributorBy Rittal
SKU
RIT6742600
Weight
95 kg
This item is ineligible for free shipping due to its size/weight.
Series TP Consoles

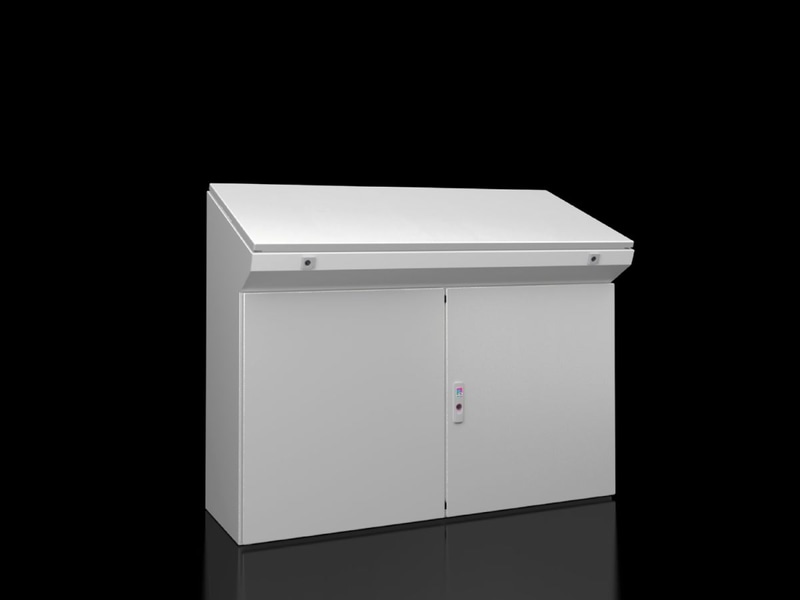

TP One-piece console, WHD1: 1200x960x400/T2: 520 mm, Sheet steel
Supply includes
Housing, solid back and sides
Door or double door at front, with locking rod
Mounting plate
Cover hinged at rear, 2 stays with automatic locking. Unlatching automatically on the left, manually on the right
Base Plates
TP Consoles
One-piece console for operating and monitoring, with large mounting plate and a high protection category of IP 55, available in four different widths. The AX lock plate ensures a uniform appearance, and two-part gland plates are included with the supply for simple cable routing.
Technical Specifications
Dimensions
| Width | 1,200 mm |
| Height | 960 mm |
| Depth (top) | 500 mm |
| Depth (bottom) | 400 mm |
Material
| Housing | Carbon steel, 1.5 mm |
| Door and console lid | Carbon steel, 2.0 mm, all-round foamed-in PU seal |
| Mounting plate | Carbon steel, 3.0 mm |
Mounting plate
| Width | 1,130 mm |
| Height | 900 mm |
Surface finish
| Housing, cover and door | Dipcoat-primed, powder-coated on the outside, textured paint |
| Mounting plate | Zinc-plated |
| Color | RAL 7035 |
| Number of doors | 2 |
| IK code | IK08 |
| Protection category IP to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Weight/packaging unit | 95 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177959958 |
| ETIM 7.0 | EC000784 |
| ECLASS 8.0 | 27180504 |
Why Proax for Rittal 6742600?
Proax is an authorized distributor of Rittal 6742600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
