6705600
Official DistributorBy Rittal
SKU
RIT6705600
Weight
52.5 kg
This item is ineligible for free shipping due to its size/weight.
Series Pedestals

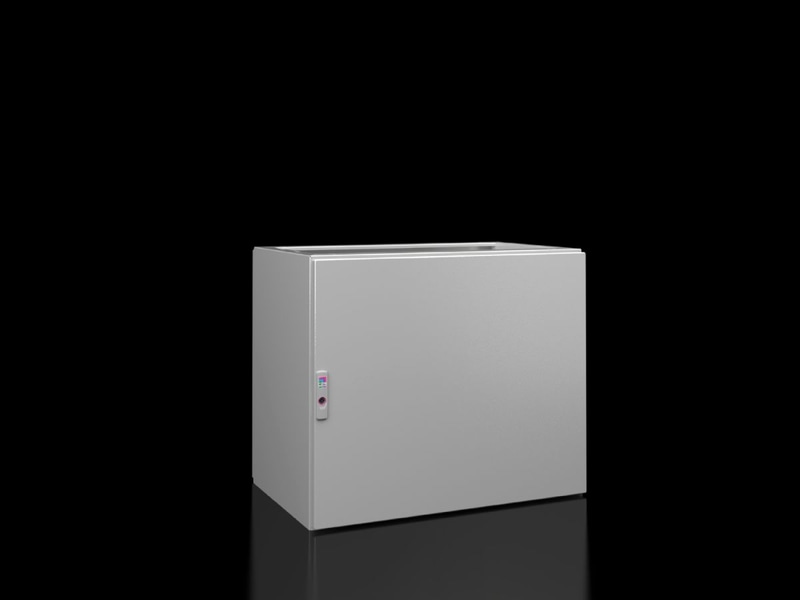

TP TopConsole system, pedestal, WHD: 800x675x500 mm, Sheet steel
Supply includes
Housing open at top
Door or double door with locking rod (with depth 400 mm at the front, with depth 500 mm at the front and rear)
Mounting plate
Base Plates
Pedestals
TopConsole pedestals, four widths and two different depths provide the basis for every TopConsole solution. The AX lock plate ensures a uniform appearance, and two-part gland plates are included with the supply for simple cable routing.
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 675 mm |
| Depth | 500 mm |
Material
| Housing | Carbon steel, 1.5 mm |
| Door and console lid | Carbon steel, 2.0 mm, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 699 mm |
| Height | 571 mm |
Surface finish
| Housing, cover and door | Dipcoat-primed, powder-coated on the outside, textured paint |
| Mounting plate | Zinc-plated |
| Color | RAL 7035 |
| Number of doors | 1 |
| Protection category IP to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Note | null |
| Weight/packaging unit | 52.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177959897 |
| ETIM 7.0 | EC000784 |
| ECLASS 8.0 | 27180504 |
