5366050
Official DistributorBy Rittal
SKU
RIT5366050
Weight
101.4 kg
This item is ineligible for free shipping due to its size/weight.
Series PC enclosure system

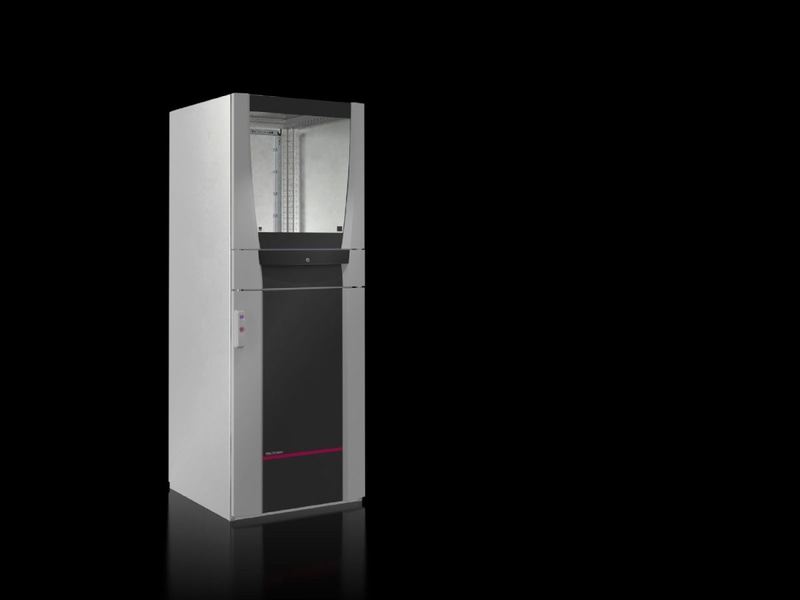

PC PC enclosure system, WHD: 600x1600x636 mm, Sheet steel, with glazed door at the top, folding keyboard, component shelf
Supply includes
Housing, door, rear door
Glazed door, top
Keyboard drawer
Component shelf
PC enclosure system
***New*** Secure accommodation of all PC components, from monitors, to PCs and keyboards. Extremely simple to use and modern design. Complete protection from humidity and dirt, temperature fluctuations and unauthorized access.
Technical Specifications
Color
| Housing, door, decorative trim panels, supports | RAL 7035 |
| Handle | RAL 7015 |
| Monitor field, door center section | RAL 7015 |
Dimensions
| Width | 600 mm |
| Height | 1,600 mm |
| Depth | 636 mm |
Material
| Housing, door, rear door, mounting compartment, supports | carbon steel |
| Handles, decorative trim panels | Plastic |
| Door trim panels | Aluminum |
| Viewing window | Single-pane safety glass |
| Version | with glazed door at the top, keyboard drawer and component shelf |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint |
| Protection category IP to IEC 60 529 | IP 55 |
| Standard | NEMA 12 |
| Type rating according to UL 50E | Type 1, 12 |
| Max. keyboard dimensions (WxHxD) | 480 x 70 x 260 mm |
| Weight/packaging unit | 101.4 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177959422 |
| ETIM 7.0 | EC002502 |
| ECLASS 8.0 | 27180501 |
Why Proax for Rittal 5366050?
Proax is an authorized distributor of Rittal 5366050 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
PC PC enclosure system, WHD: 600x1600x636 mm, Sheet steel, with glazed door at the top, folding keyboard, component shelf
