Name: 6315250
Brand: Rittal
SKU: RIT6315250
Price: 561.1900 CAD
Availability: InStock

Official Distributor

By Rittal

SKU

Weight

7.5 kg

Series AX compact control cabinet Operating housing AX with handle strips

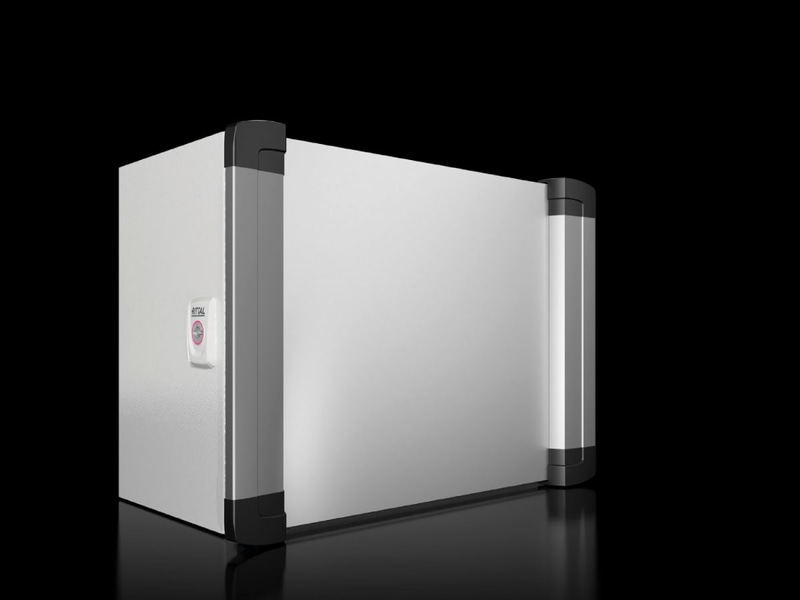

AX Operating housing with handle strips, WHD: 380x300x210 mm, sheet steel, aluminium handle strips, servicing access from the front

Supply includes

Housing with cut-out and reinforcement for support arm connection Ø 130 mm
Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel
Side handle strips with cover caps
Integral interior mounting bracket with system punchings
Cam lock with 3 mm double-bit insert

AX compact control cabinet Operating housing AX with handle strips

The command panel with handle strips based on AX, carbon steel, with support arm cut-out Ø 130 mm to match the support arm system CP 60/120/180, service access optionally from front or rear, aluminum front panel can be easily removed for machining, protection category IP 55.

Color

Housing and door	RAL 7035
Handle strip	Natural anodized
Front panel	Natural anodized.
Cover caps	Similar to RAL 7024

Dimensions

Width	380 mm
Height	300 mm
Depth	210 mm

Material

Housing	Carbon steel
Door	Carbon steel, all-round foamed-in PU seal
Front panel	Aluminum
Cover caps	Plastic

Surface finish

Housing and door	Dipcoat primed, powder-coated on the outside, textured paint
Handle strip	Natural anodized
Front panel	Natural anodized.

Protection category NEMA	NEMA 1, 12
Type rating according to UL 50E	Type 1, 12
Servicing access version	From the front
IK code	IK08
Note	The support arm connection and door catch may be swapped over by rotating the enclosure
Base material	Carbon steel
Note on Model No.	Compatible mounting plate 5051.370 with shipping bag 5051.300
Weight/packaging unit	7.5 kg
Customs tariff number	94032080
EAN	4028177923140
ETIM 7.0	EC002504
ECLASS 8.0	27180505
