SKU
Weight
15.4 kg

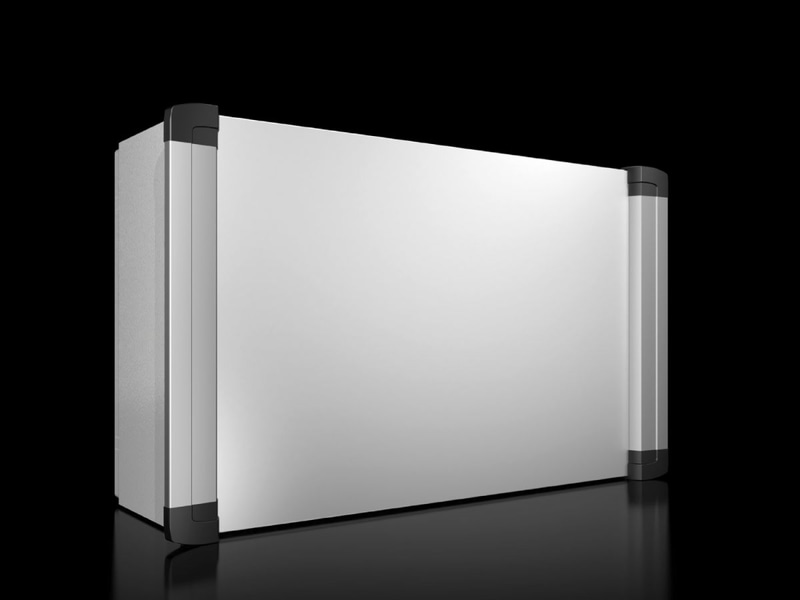

AX Operating housing with handle strips, WHD: 600x380x210 mm, sheet steel, aluminium handle strips, servicing access from the rear
Supply includes
Housing with cut-out and reinforcement for support arm connection Ø 130 mm
Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel
Side handle strips with cover caps
Integral interior mounting bracket with system punchings
Cam lock with 3 mm double-bit insert
AX compact control cabinet Operating housing AX with handle strips
The command panel with handle strips based on AX, carbon steel, with support arm cut-out Ø 130 mm to match the support arm system CP 60/120/180, service access optionally from front or rear, aluminum front panel can be easily removed for machining, protection category IP 55.
Technical Specifications
Color
| Housing and door | RAL 7035 |
| Handle strip | Natural anodized |
| Front panel | Natural anodized. |
| Cover caps | Similar to RAL 7024 |
Dimensions
| Width | 600 mm |
| Height | 380 mm |
| Depth | 210 mm |
Material
| Housing | Carbon steel |
| Door | Carbon steel, all-round foamed-in PU seal |
| Front panel | Aluminum |
| Cover caps | Plastic |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Handle strip | Natural anodized |
| Front panel | Natural anodized. |
| Protection category NEMA | NEMA 1, 12 |
| Type rating according to UL 50E | Type 1, 12 |
| Servicing access version | From the rear |
| IK code | IK08 |
| Note | The support arm connection and door catch may be swapped over by rotating the enclosure |
| Base material | Carbon steel |
| Weight/packaging unit | 15.4 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177923195 |
| ETIM 7.0 | EC002504 |
| ECLASS 8.0 | 27180505 |
Why Proax for Rittal 6320550?
Proax is an authorized distributor of Rittal 6320550 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
