Official DistributorBy Rittal
SKU
Weight
63.5 kg

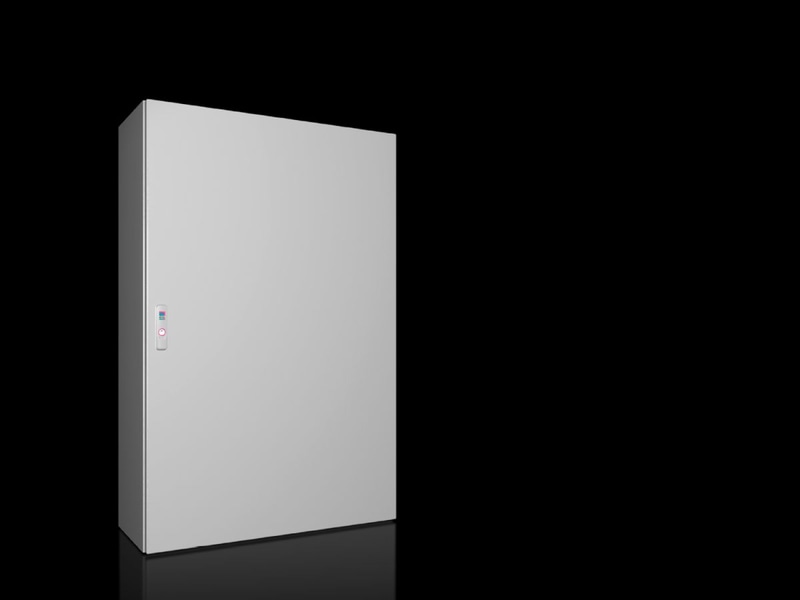

AX Compact enclosure, WHD: 800x1200x300 mm, sheet steel, with mounting plate, single-door, with 3-point lock system
Supply includes
Housing with door(s)
Flange (gland) plate(s) in enclosure base
Mounting plate
Punched door strip
Lock: 3 mm double-bit
AX compact control cabinet Basic enclosure AX, carbon steel
System perfection. The new carbon steel compact enclosure AX offers maximum data quality and consistency in engineering, flexibility, and safety in assembly and interior installation.
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 1,200 mm |
| Depth | 300 mm |
Gland plate
| Size | 5 |
| Qty. | 2 |
Lock
| Lock version | 3-point locking system |
| Number locks | 1 |
| Lock Insert | 3 mm double-bit |
Material
| Housing | Carbon steel |
| Door | Carbon steel, all-round foamed-in PU seal |
Mounting plate
| Width | 745 mm |
| Height | 1,175 mm |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Mounting plate | Zinc-plated |
| Color | RAL 7035 |
| Protection category NEMA | NEMA 1, 3R, 4, 12 |
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, 3R, 4, 12 |
| IK code | IK10 |
| Material thickness - Door | 2 mm |
| Material thickness - enclosure | 1.5 mm |
| Material thickness – mounting plate | 2.5 mm |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| Base material | Carbon steel |
| Weight/packaging unit | 63.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177813236 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1280000?
Proax is an authorized distributor of Rittal 1280000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
