9342540
Official DistributorBy Rittal
SKU
RIT9342540
Weight
0.82 kg

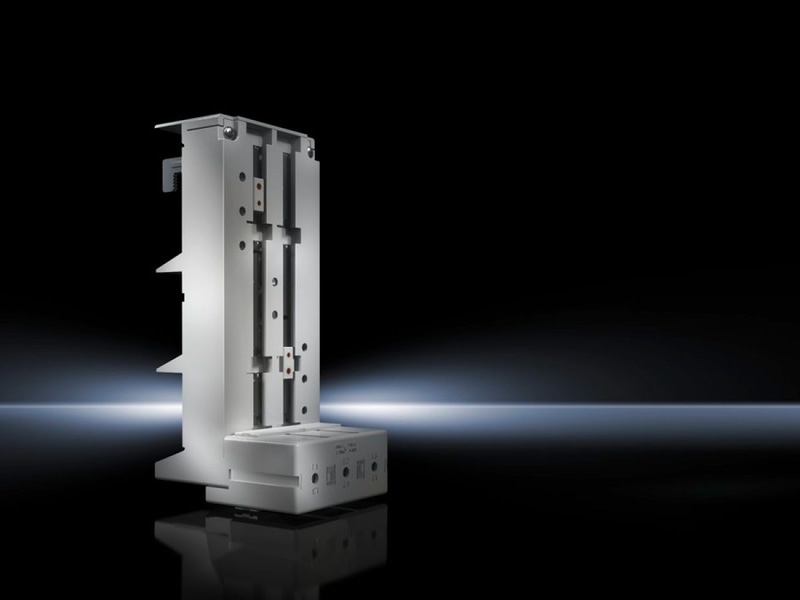

SV Circuit-breaker component adaptor, 125 A, 690 V, 3-pole, cable outlet top, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Supply includes
Terminal cover
Sliding Blocks
Circuit-Breaker Component Adaptors 3-pole
For mechanical attachment and the direct contact of circuit breakers on the board.
Technical Specifications
Dimensions
| Width | 90 mm |
| Height | 225 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Type of connection (electrical) | Box terminal |
| Rated current max. | 125 A |
| Rated operating voltage | 690 V, 3~ |
| Cable outlet | Top |
| For bar systems with center-to-center spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of Poles | 3-pole |
| Connection for round conductor cross-sections | 35 ‐ 120 mm² |
| Clamping area for laminated copper bars (W x H) | 18.5 x 15.5 mm |
| To fit manufacturer (model) | ABB (S1, S2, T1, T1 UL, T2, T2 UL, XT1, XT2) |
| Weight/packaging unit | 0.82 kg |
| Copper weight (kg per piece) | 0.202 |
| Customs tariff number | 85369095 |
| EAN | 4028177525658 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9342540?
Proax is an authorized distributor of Rittal 9342540 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
