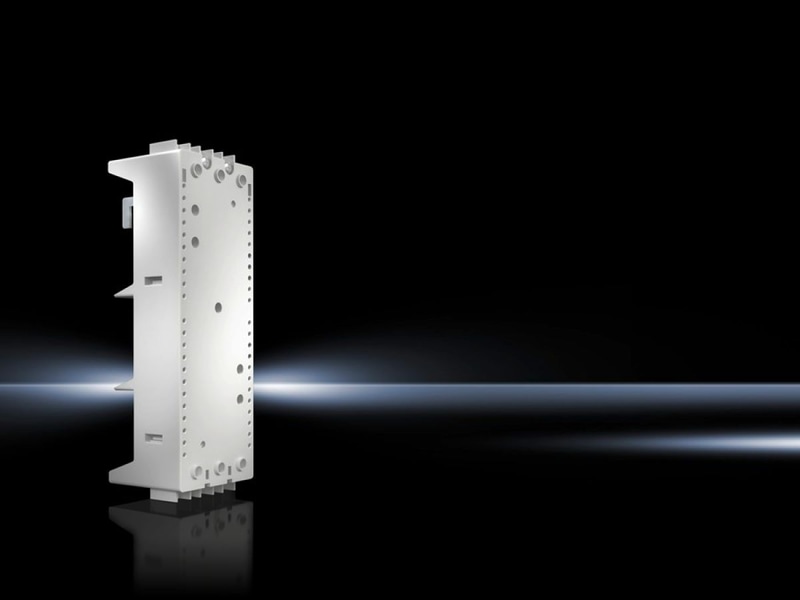

SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
Circuit-Breaker Component Adaptors 3-pole
For mechanical attachment and the direct contact of circuit breakers on the board.
Technical Specifications
Dimensions
| Width | 72 mm |
| Height | 210 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Type of connection (electrical) | Box terminal |
| Rated current max. | 100 A |
| Rated operating voltage | 690 V, 3~ |
| Cable outlet | Bottom |
| For bar systems with center-to-center spacing | 60 mm |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Number of Poles | 3-pole |
| For universal switchgear application | Yes |
| Connection for round conductor cross-sections | 10 ‐ 35 mm² |
| Clamping area for laminated copper bars (W x H) | 10 x 7.8 mm |
| To fit manufacturer (model) | ABB (MS 495, MS 496, MS 497) |
| Weight/packaging unit | 0.58 kg |
| Copper weight (kg per piece) | 0.114 |
| Customs tariff number | 85369095 |
| EAN | 4028177503762 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
